Toaster Teardown

Опубликовано: 16/10/18

Разбираем

Введение

Инструменты

  1. TL23lhUXkQ2vPhlv

    • Remove Breville bread toaster base screws -- 14 places.

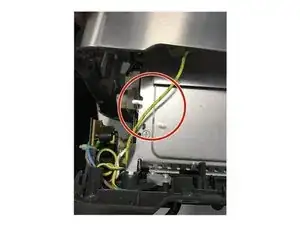

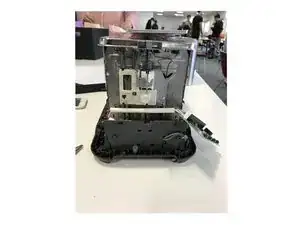

  2. EaJJKXt4eXcTLPrb
    EaJJKXt4eXcTLPrb
    lIKKbhluXN5mqreP

    • With a scissor cut the wires connecting the base and the shell.

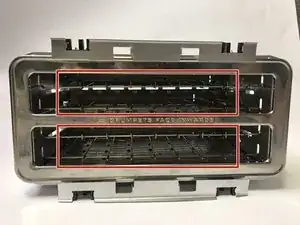

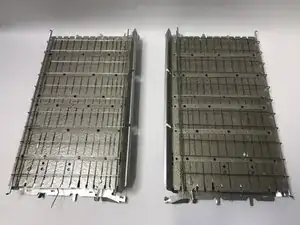

  3. S2CfovA1ZHldbPXT
    S2CfovA1ZHldbPXT
    mv1mCwWfiv6VbcJs

    • Break up the inner shell of toaster and the wire sheet.

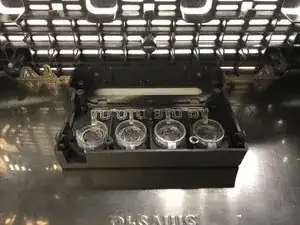

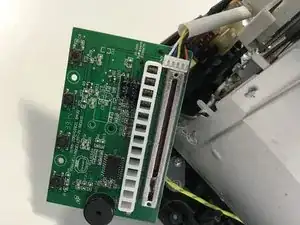

  4. O1QAPvAcfVNmfUri
    O1QAPvAcfVNmfUri
    bCDZCHrK1uqQZa4X

    • Remove all the parts of shell and base.

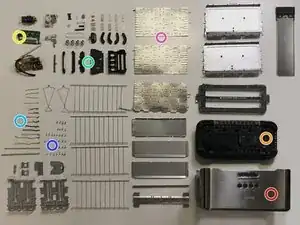

  5. VLEA1H5kdrTcexUQ

    • Shell

    • Base

    • Heater element -Nickel chrome wire

    • Switch assembly - ABS injection moulding

    • Circuit board

    • Wires

    • Screws

Автор

Shuman C

Участник c: 16/10/18

130 Репутация

Один комментарий

Errors:
Step 1. There are 18 screws. The 4 corner screws hold in the feet. The feet must be removed to reveal 4 more screws under each rubber foot.

Step 2. The green earth wire is welded onto the cover, but can be unscrewed at the toaster end rather than cutting the wire.
