iPhone 6 Plus Logic Board Assembly Replacement

Автор: Walter Galan
  • Комментарии: 0
iPhone 6 Plus Logic Board Assembly Replacement

Сложность

Moderate

Шаги

5

Необходимое время

Нет оценки

Введение

Prereq only, battery removed.

  1. jTOBTYS36CWhkW5s

    • Remove the single 2.8 mm Phillips #00 screw securing the plastic clip to the logic board.

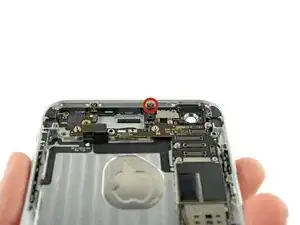

  2. iEVDxU6RoDaxfVl3

    • Remove the single 1.3 mm Phillips #00 screw recessed against the top of the rear case.

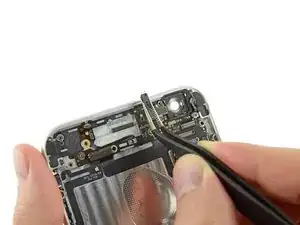

  3. EVCDIK1khpq2nfQM

    • Use a pair of tweezers to firmly grasp the plastic clip and remove it from the iPhone.

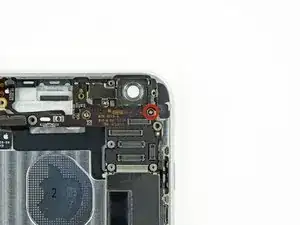

  4. MmSBDKvxhnPAxejW

    • Remove the single 1.6 mm Phillips #00 screw securing the antenna clip to the rear case.

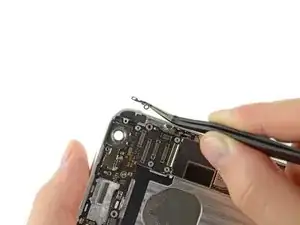

  5. KRXgi4qGxUl1rehV

    • Carefully grasp the antenna clip with a pair of tweezers and remove it from the iPhone.

Заключение

To reassemble your device, follow these instructions in reverse order.
