iPhone 5c Screen Replacement

Автор: ncstate8910
  • Комментарии: 0
iPhone 5c Screen Replacement

Сложность

Moderate

Шаги

7

Необходимое время

20 - 40 минут

Введение

This guide gives instructions on how to replace the screen on an iPhone 5c.

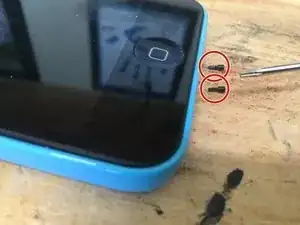

  1. nQFy2KMG4gHE1B3E

    • Take out the pentolope screws from the bottom of the iPhone next to the speakers.

  2. DXjmkHrBWUNOLgDF

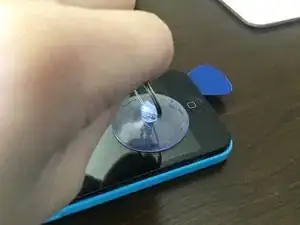

    • Get suction cup and pull up.

    • Note: Use a guitar pick and pry up to lift screen easily.

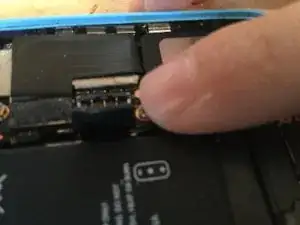

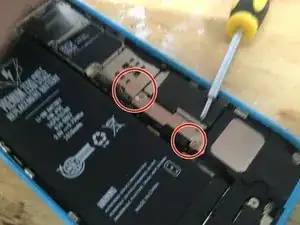

  3. AqMWEyT35sF6PXnu
    AqMWEyT35sF6PXnu
    aAuOpF5MQBlCptCe

    • Unplug battery take out Phillips head screws on the cover and unplug the battery.

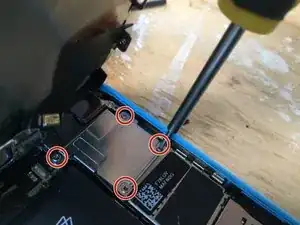

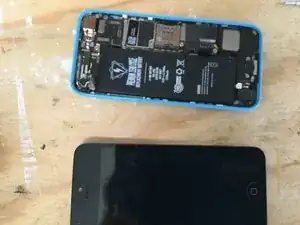

  4. C5bWqQtIGPqUG51L
    C5bWqQtIGPqUG51L
    YdRsUf4DnNG1uE5Y
    AZTkOeWEqOBZAxlk

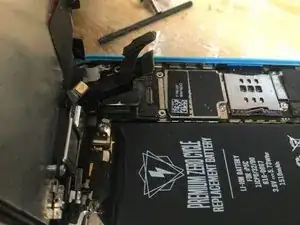

    • Take off screen cables by removing the shield with four Phillips head screws

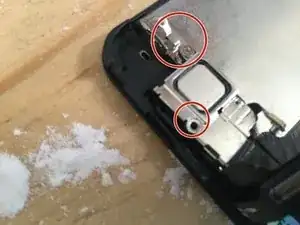

  5. sKuNWXnUQY2GyHUl

    • Remove camera and micro bracket with its two Phillips head screws.

    • Note: small sticker needs to be pulled up from front facing camera.

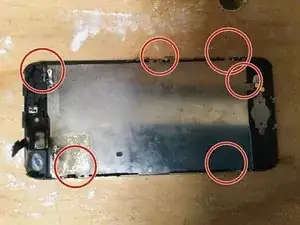

  6. 1aPgEZlsQxRywOvq

    • Remove back plate with six Phillips head screws.

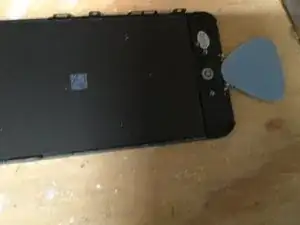

  7. LdEM44LBwZgoRdTk
    LdEM44LBwZgoRdTk
    2hKqElmXqwRTi6ar

    • Remove home button bracket and take out the home button. (You may need to use a guitar pick to loosen home button adhesive).

Заключение

To reassemble your device, follow these instructions in reverse order.
