iPad Mini CDMA Small Metal Bracket Replacement

Автор: Walter Galan
  • Комментарии: 0
iPad Mini CDMA Small Metal Bracket Replacement

Сложность

Moderate

Шаги

4

Необходимое время

Нет оценки

Введение

Prereq for removing logic board with no battery.

  1. COvnMCnaQVjoPi4c
    COvnMCnaQVjoPi4c
    wDy2YUwwARrUPICL
    WYVr5IKDFYYGqJYt

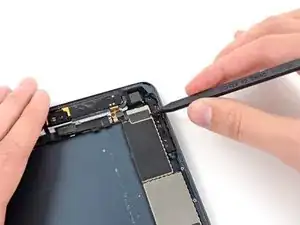

    • Use the tip of a spudger to start peeling up the right side of the black tape covering the small metal bracket.

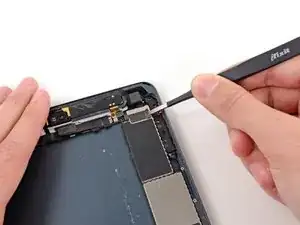

    • Use tweezers to peel the tape up the rest of the way, and remove it from the bracket.

  2. 4TLoYBvsSelECggQ
    4TLoYBvsSelECggQ
    eG5nOJHnCroeIkqJ

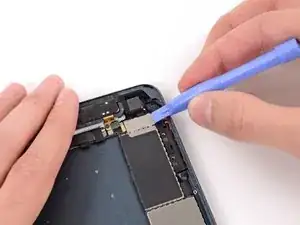

    • Use a plastic opening tool to push the bracket slightly to the left.

  3. 64fXI2CkX5nSvN2t
    64fXI2CkX5nSvN2t
    5hh1SPB5FQXbi4T2

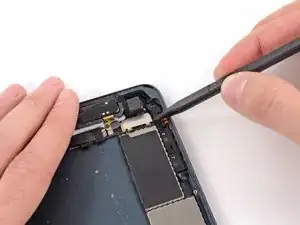

    • Use a spudger tip to lift up the lower side of the bracket.

  4. a1NkGGoM3RrLxJ4T
    a1NkGGoM3RrLxJ4T
    j4oxLgebtUlHFu2T

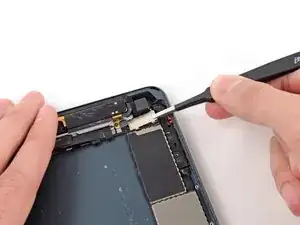

    • Remove the bracket with tweezers.

    • During reassembly, hook the top edge of the plate in place first, then lower the bottom into its slots.

Заключение

To reassemble your device, follow these instructions in reverse order.
