iPad Mini CDMA Small Metal Bracket Replacement

Автор: Walter Galan
  • Комментарии: 0
iPad Mini CDMA Small Metal Bracket Replacement

Сложность

Moderate

Шаги

4

Необходимое время

Нет оценки

Введение

Prereq for removing speakers with battery.

  1. SP3PjgnFYuLsKrgh
    SP3PjgnFYuLsKrgh
    CukomNWKvD1ZqCIK
    SEVpt3qXNDytWvRT

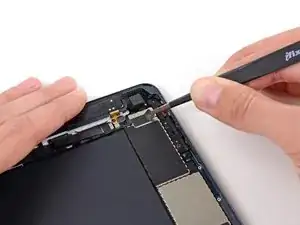

    • Use the tip of a spudger to start peeling up the right side of the black tape covering the small metal bracket.

    • Peel the tape up the rest of the way with tweezers, and remove it from the bracket.

  2. A5WELeoUarMPBxXQ
    A5WELeoUarMPBxXQ
    nbXtdAKcqJKy3TtN

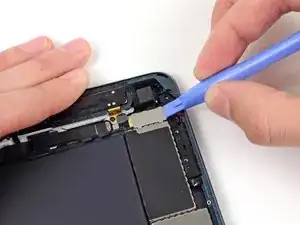

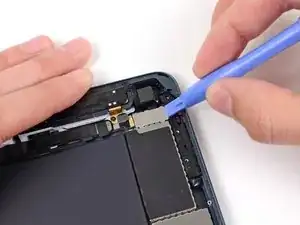

    • Use a plastic opening tool to push the metal bracket slightly to the left.

  3. J6dWETtw2agS3nvC
    J6dWETtw2agS3nvC
    gX2jQNSs2kxIxhyf

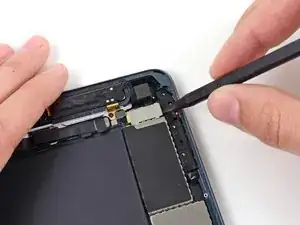

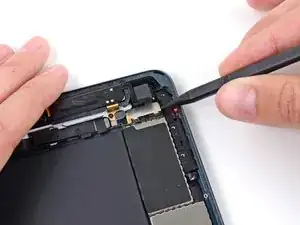

    • Use the tip of a spudger to lift up the lower side of the metal bracket.

  4. LtDhVUTKC4JfxhTq
    LtDhVUTKC4JfxhTq
    RFTaQAnVCf2sIgPj

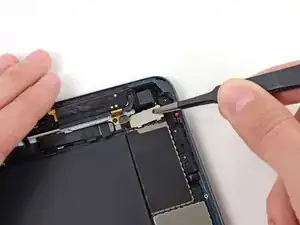

    • Grab the bracket with tweezers and lift it up out of the iPad.

    • During reassembly, hook the top edge of the plate in place first, then lower the bottom into its slots.

Заключение

To reassemble your device, follow these instructions in reverse order.
