iMac Intel 27" EMC 2546 AirPort/Bluetooth Card Replacement

Автор: Andrew Optimus Goldheart
  • Комментарии: 0
iMac Intel 27" EMC 2546 AirPort/Bluetooth Card Replacement

Сложность

Moderate

Шаги

2

Необходимое время

Нет оценки

Введение

Инструменты

  1. BIwEdEjDpsldPfaf

    • Remove two 3.7 mm T5 screws from the back of the logic board.

  2. VL2xMQtTGUWFfRDc

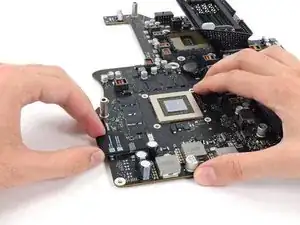

    VL2xMQtTGUWFfRDc

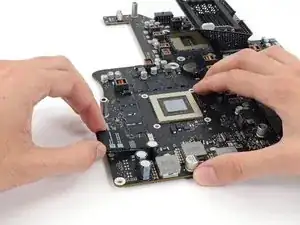

    ZLmadnXS2bNwbPYS

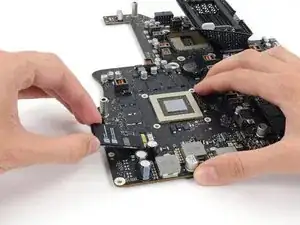

    tUylrGIdMNSeppPC

    • To avoid damaging its socket, do not lift the end of the AirPort/Bluetooth Card excessively.

    • Lift the end of the AirPort/Bluetooth Card up slightly and pull it straight out of its socket on the logic board.

    • When reinstalling the card, be sure it is properly seated before reinstalling its retaining screw.

Заключение

To reassemble your device, follow these instructions in reverse order.
