iMac Intel 21.5" Retina 4K Display AirPort/Bluetooth Card Replacement

Автор: Evan Noronha
  • Комментарии: 0
iMac Intel 21.5" Retina 4K Display AirPort/Bluetooth Card Replacement

Сложность

Moderate

Шаги

2

Необходимое время

Нет оценки

Введение

Prereq only for removing the AirPort/Bluetooth card from the logic board.

Инструменты

  1. YApPuCUsMVg6YPrs

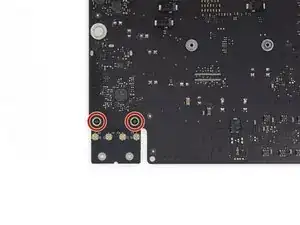

    • Remove the two 3.3 mm T5 Torx screws securing the AirPort/Bluetooth card to the logic board.

  2. WDUdywjEs1iUDrGa
    WDUdywjEs1iUDrGa
    MRMBswtVj1mSZFBC
    M1X2pkgXfKycMWCo

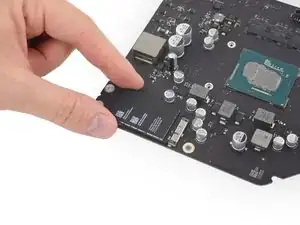

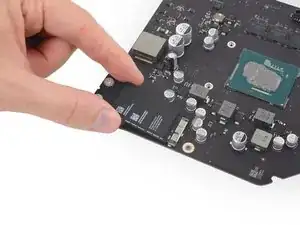

    • Slightly lift the AirPort/Bluetooth card and pull it straight out its socket.

    • Do not use excessive force to pull the end of the AirPort/Bluetooth card away from its socket on the logic board. Doing so may damage the socket.

    • When reinstalling the card, be sure it is properly seated before reinstalling the retaining screws.

    • If the AirPort/Bluetooth card is properly seated, its screw holes should align with those on the logic board.

Заключение

To reassemble your device, follow these instructions in reverse order.
