iMac Intel 21.5" EMC 2544 Heat Sink Assembly Replacement

Автор: Sam Goldheart
  • Комментарии: 0
iMac Intel 21.5" EMC 2544 Heat Sink Assembly Replacement

Сложность

Moderate

Шаги

6

Необходимое время

Нет оценки

Введение

Prereq to remove the heat sink.

  1. cOcrX1b4L2pPITUw
    cOcrX1b4L2pPITUw
    XnjcFyxbSH5rxVTP
    SJINkCvkSRlQpjfE

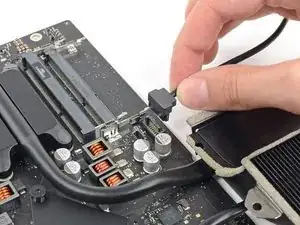

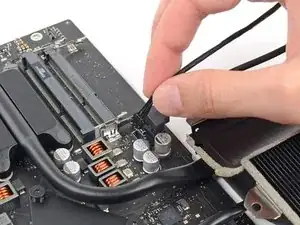

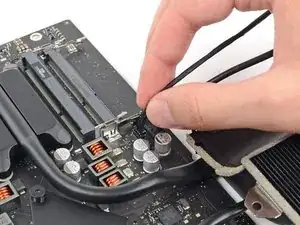

    • Disconnect and remove the SATA data and power cables from the logic board.

  2. ivtpcLUtNcAHJntU

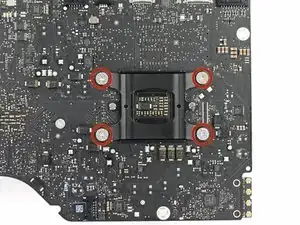

    • Remove the four 12 mm T10 shoulder screws from the spring plate behind the CPU.

  3. tm2Iv6pY4KPhQZnN

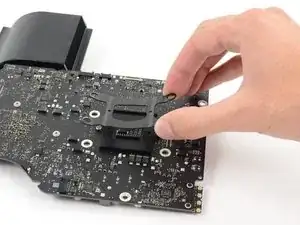

    • Remove the spring plate from behind the CPU heat sink.

  4. fGLuTmurVUTJWhOd

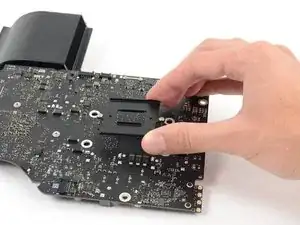

    • Lift and remove the backing plate from behind the CPU heat sink.

    • The backing plate has two posts that fit into alignment holes in the logic board and heat sink.

  5. 66NAkYSMcHJwna44
    66NAkYSMcHJwna44
    ifCkOsjsh4PvYQUQ

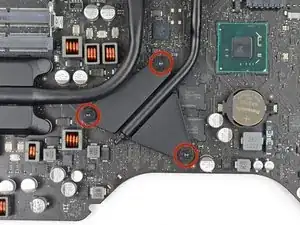

    • Remove the three 12 mm T8 Torx screws securing the GPU heat sink to the logic board.

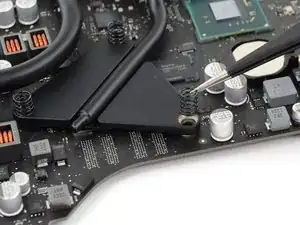

    • Remove the three springs left behind.

    • These springs might come up with the screws; be careful not to lose track of them.

  6. WGeMEogUysSIPPXQ
    WGeMEogUysSIPPXQ
    oXwsLDRwBJHDkME3

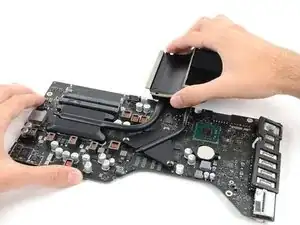

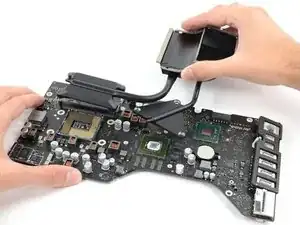

    • Lift and remove the heat sink up off the logic board.

    • The CPU will most likely detach with the heat sink, so be careful about where you lay it down.

Заключение

To reassemble your device, follow these instructions in reverse order.
