iMac Intel 21.5" EMC 2544 Hard Drive Assembly Replacement

Автор: Sam Goldheart
  • Комментарии: 0
iMac Intel 21.5" EMC 2544 Hard Drive Assembly Replacement

Сложность

Difficult

Шаги

4

Необходимое время

Нет оценки

Введение

Prereq only.

  1. NXVG3EpNESpWuSG4
    NXVG3EpNESpWuSG4
    vZCfhjxhqFGgL6kl
    gOtADbAUpYb5fcvE

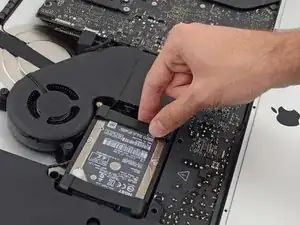

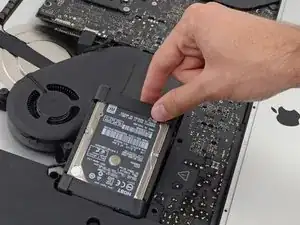

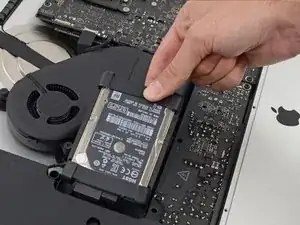

    • Lift the hard drive from the edge nearest the fan and pull it slightly out of its recess.

    • The hard drive is attached by two cables, do not attempt to fully remove it from the iMac just yet.

  2. SljsMuexdoPEVgsh
    SljsMuexdoPEVgsh
    VkTswOrHWu5CkQOt

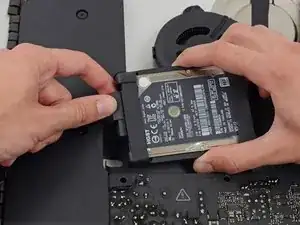

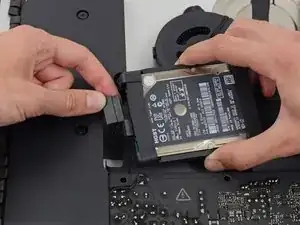

    • Disconnect the SATA power cable.

  3. wlvQoxvu1gJC2dQ2
    wlvQoxvu1gJC2dQ2
    IsUrJURBufgJdlUJ

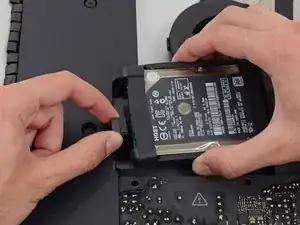

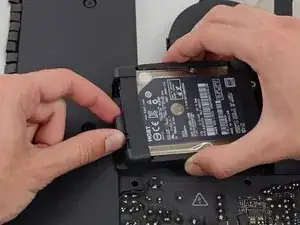

    • Unplug the SATA data cable from the hard drive.

  4. NFoVke4cIsVcxOJZ

    • Lift and remove the hard drive from the iMac.

Заключение

To reassemble your device, follow these instructions in reverse and use our Adhesive Strips Guide to reattach the display glass.
