iMac Intel 21.5" EMC 2544 AirPort/Bluetooth Card Replacement

Автор: Walter Galan
  • Комментарии: 0
iMac Intel 21.5" EMC 2544 AirPort/Bluetooth Card Replacement

Сложность

Moderate

Шаги

2

Необходимое время

Нет оценки

Введение

Prereq for removing logic board, heat sink gone.

Инструменты

  1. iYMFEy5WgnN1IAB6

    • Remove the two 3.2 mm T5 screws securing the AirPort/Bluetooth card to the logic board.

  2. g6H42aZyxJCTu2Nl
    g6H42aZyxJCTu2Nl
    VXovwEAYvqFrybCV
    QIF2FZhjG3yPLL24

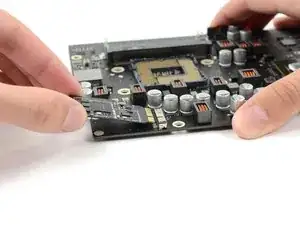

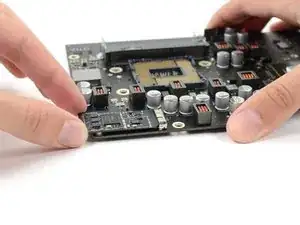

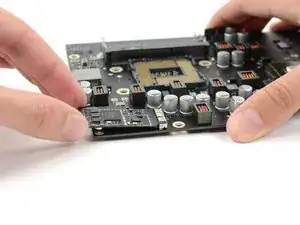

    • Lift the end of the AirPort/Bluetooth card slightly, and pull it straight out of its socket on the logic board.

Заключение

To reassemble your device, follow these instructions in reverse order.
