iBook G4 12" 800 MHz-1.2 GHz AirPort Extreme Card Replacement

Автор: iRobot
  • Комментарии: 0
iBook G4 12" 800 MHz-1.2 GHz AirPort Extreme Card Replacement

Сложность

Easy

Шаги

6

Необходимое время

Нет оценки

Введение

Install an AirPort Extreme 802.11g card internally.

  1. twUoDXEVMw6TP6JK

    • Use a coin to rotate the battery locking screw 90 degrees clockwise.

  2. JbLkX3rgRZXxaRHj

    • Lift the battery out of the computer.

  3. 5RTHDhBUrqGqMrZc

    • Pull the keyboard release tabs toward you and lift up on the keyboard until it pops free.

    • If the keyboard does not come free, use a small flathead screwdriver to turn the keyboard locking screw 180 degrees in either direction and try again.

    • Flip the keyboard over, away from the screen, and rest it face-down on the trackpad area.

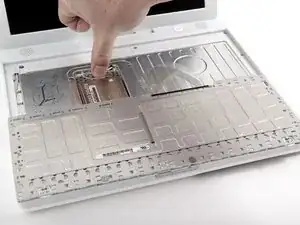

  4. eSSHvojXTumHhoJK

    • Push the wire clasp away from the AirPort card and toward the display, then rotate up to free it from the RAM shield.

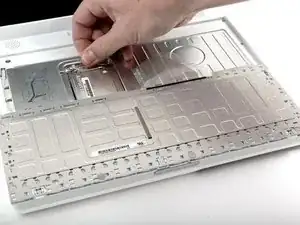

  5. WFujyS5KqNKJu2qw

    • Grasp the clear plastic tab on the AirPort card and pull toward the display.

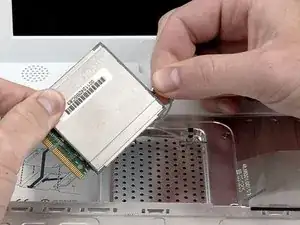

  6. cSnMLBEDimZDC1V2

    • Hold the AirPort card in one hand and use your other hand to remove the antenna cable.

Заключение

To reassemble your device, follow these instructions in reverse order.
