Zebra ZP 505 Printhead Replacement

Автор: Brian Jagger
  • Комментарии: 0
Zebra ZP 505 Printhead Replacement

Сложность

Easy

Шаги

4

Необходимое время

5 минут

Введение

Use the following guide to remove the printhead safely without the use of tools.

Инструменты

  1. 2PH1ujUMAIStpDGi

    • Locate a tab securing the printhead on the right hand side of the printer.

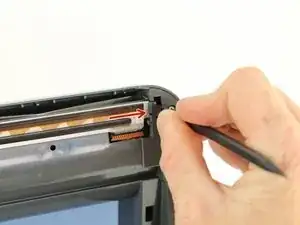

  2. F3OhvdhPbtEkYRLm

    • Push the tab to the right. The thermal head should release outward.

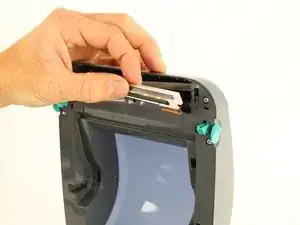

  3. 1bdIPJ4RjNNylTVt

    • Hold the thermal head and pull out gently.

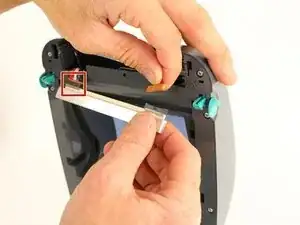

  4. JPjUERqYI1dVEroF

    • Disconnect the two (tan) harnesses located on opposite sides of the thermal head and remove the printhead.

Заключение

To reassemble your device, follow these instructions in reverse order.
