ZTE Z667T Speaker Replacement

Автор: Michael Lidbetter
  • Комментарии: 0
ZTE Z667T Speaker Replacement

Сложность

Moderate

Шаги

5

Необходимое время

5 минут

Введение

This guide shows how to replace the speaker for ZTE Z667T.

  1. gAXpfgIADARNLOTY

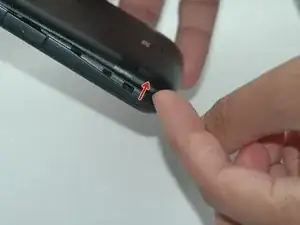

    • Gently insert your fingernail into the bottom left crevice of the back cover and lift up.

  2. G5etfl1AvFPk3yIl

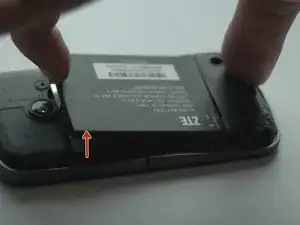

    • Remove the battery by inserting your fingernail at the top of the battery and lift up.

  3. OdBp6DRH1JWfiFfu

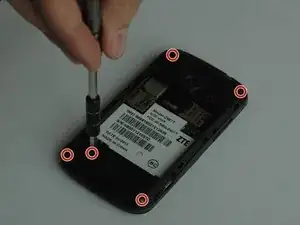

    • Using a Phillips #000 screwdriver, remove the five screws located on the back case.

  4. HTwWWePo3UIqAwAs

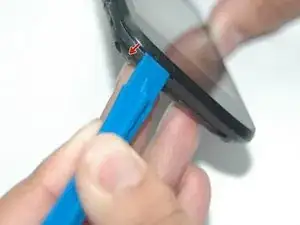

    • Gently pry open the back case using the plastic opening tool.

    • Pry open in multiple locations to avoid damage.

  5. yoRUEbZkWckXLCFX

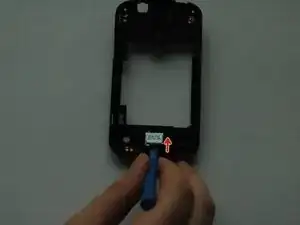

    • Using the plastic opening tool, gently lift the speaker out of the back case.

Заключение

To reassemble your device, follow these instructions in reverse order.
