Xiaomi Yi Front Panel Replacement

Автор: William Zipperer
  • Комментарии: 3
Xiaomi Yi Front Panel Replacement

Сложность

Moderate

Шаги

4

Необходимое время

2 минут

Введение

The front panel is attached to the main case of the camera. It can be removed with a small blue plastic opening tool.

The front panel does not include the lens, but does allow you access to other internal parts of the camera; or, to replace a damaged front panel.

Инструменты

  1. sFcVWZYBHmLqMhZj
    sFcVWZYBHmLqMhZj
    EeNl1hTyAmP4Us4C

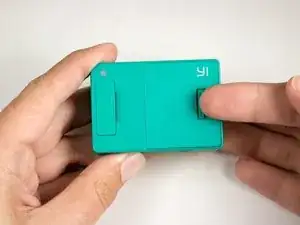

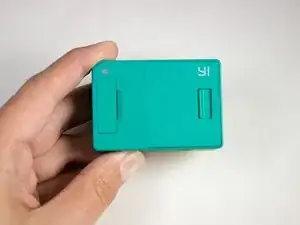

    • Push the battery door switch to the left.

    • Lift the battery door up.

  2. S4S4V1ZpcnPq5tvr
    S4S4V1ZpcnPq5tvr
    Gd3PQA4IyHDT1lJm
    G6eTX6xM2aQOQM6i

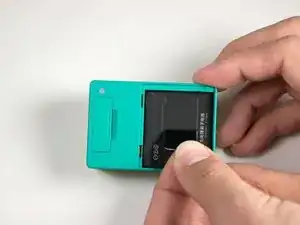

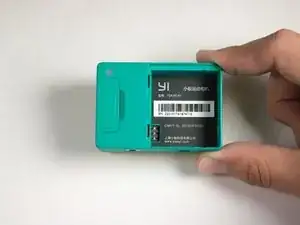

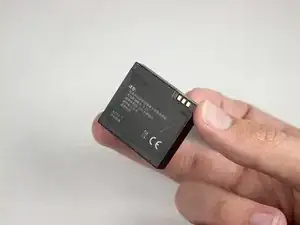

    • Lift the battery tab up.

    • Remove the battery by pulling the removal tab.

  3. OIic3D1eOtPsfhDH
    OIic3D1eOtPsfhDH
    NH5lnA6vNgT3yjpX

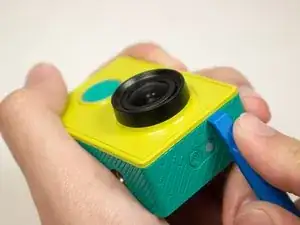

    • Introduce the plastic opening tool into any of the sides of the camera.

    • Pry with the plastic opening tool at the seam between the front and the back panel.

  4. SkYtmrQZORHZ1DTo
    SkYtmrQZORHZ1DTo
    wBATGNQRKRGQqxOI
    WBncT1rLsCTZFadQ

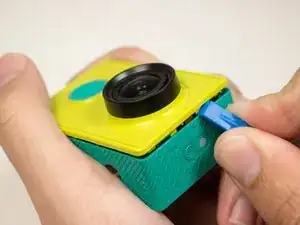

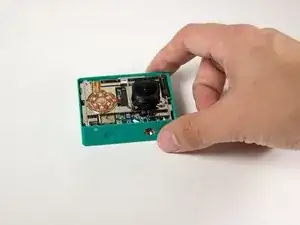

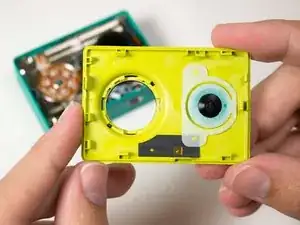

    • Slide prying tool along the seam until front panel is fully separated from the back panel.

Заключение

To reassemble your device, follow these instructions in reverse order.

Автор

William Zipperer

Участник c: 03/09/15

711 Репутация

3 комментариев

Where do you get a spare front panel, the small plastic hooks break easily

ltkipras -

I would like to know too because i had a crash and i lost the ring that goes around the lens.

fabiocastroam -

For what is the black Strip with the gold plated contact on the front panel? Is that a check for installated front panel, and can i fake them for an replacement panel?

shguro -
