Wire Stripping

Сложность

Moderate

Шаги

3

Необходимое время

1 - 3 минут

Введение

Wire needs to be exposed from its insulation in order before it can be soldered to another wire. Wire stripping exposes the wire so you are able to make good connections.

Инструменты

  1. OWvSuS3SbA6VUdji

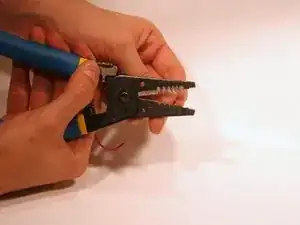

    • Match your gauge of wire to the gauge on a wire stripper.

    • Some wire strippers will have two gauge sizes for the same hole, one for solid wire and one for stranded. Make sure you use the right one for the wire you are stripping!

  2. UxCKbDnTHmIhDgld

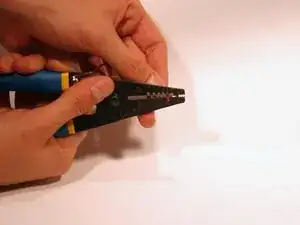

    • Place the wire stripper about a 1/4” from the end of the wire and squeeze down.

    • You can strip more than 1/4" at a time, but the effort becomes harder. About 1/2-5/8" (13-16 mm) is the most you should probably attempt.

  3. iWYfbFf3XMeQ4YIr

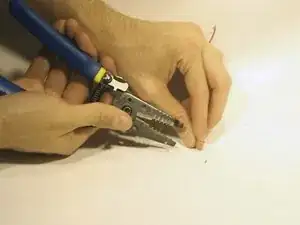

    • While squeezing, pull the stripper toward the end of the wire. This should expose some of the wire by removing its insulation.

Заключение

After your wire has been stripped, the exposed wire is ready to be soldered and reconnected to other parts of the microphone.
