Wen 2307 Power Switch Replacement

Автор: Joshua Bowery
  • Комментарии: 1
Wen 2307 Power Switch Replacement

Сложность

Easy

Шаги

7

Необходимое время

6 - 10 минут

Введение

One possible reason for your device not powering on is a damaged power switch. Use this guide to replace it.

Инструменты

  1. skEMWKMOu2MNrLAV

    • Unscrew the locking sleeve.

  2. FkWQdAgIBd1gwCqK

    • Remove the hanging clip.

  3. afJPUm6WITsGI1eE
    afJPUm6WITsGI1eE
    fn1OUSRIO2DxKuGa

    • Unscrew the six 8mm PH2 screws.

  4. 2EGrMcBLsQ5iSnPN

    • While pressing the spindle lock button, unscrew the collet nut and remove it along with the brass collet.

  5. WTj1SH1pmWKAYUJl

    • To remove the front panel, pry the device apart while holding the device with the other hand.

    • The front panel should come out easily.

  6. 6DXHgovrRId3Qty1

    • Firmly grasp and lift out power switch.

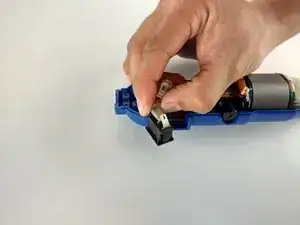

  7. TsnZfu1bVS5AFISW

    • Firmly grasp and disconnect cables.

    • Make sure to mark your cable positions so you do not reverse them when putting back together.

    where or how to get power switch , or can it be repaired

    shekar iyer -

Заключение

To reassemble your device, follow these instructions in reverse order.
