Wen 2307 Power Cable Replacement

Автор: Sergio Palacio
  • Комментарии: 0
Wen 2307 Power Cable Replacement

Сложность

Easy

Шаги

9

Необходимое время

10 минут

Введение

If your device is not powering on your power cable may be damaged. If it needs to be replaced this guide will show you how.

  1. skEMWKMOu2MNrLAV

    • Unscrew the locking sleeve.

  2. FkWQdAgIBd1gwCqK

    • Remove the hanging clip.

  3. afJPUm6WITsGI1eE
    afJPUm6WITsGI1eE
    fn1OUSRIO2DxKuGa

    • Unscrew the six 8mm PH2 screws.

  4. 2EGrMcBLsQ5iSnPN

    • While pressing the spindle lock button, unscrew the collet nut and remove it along with the brass collet.

  5. WTj1SH1pmWKAYUJl

    • To remove the front panel, pry the device apart while holding the device with the other hand.

    • The front panel should come out easily.

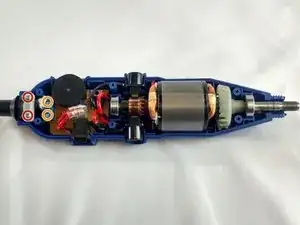

  6. MdgUKFuqcVZdABGE
    MdgUKFuqcVZdABGE

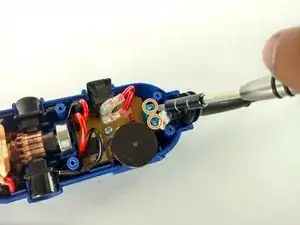

    4AdjGCUCebSNjPr5

    • Identify the screws.

    • Unscrew the two 3mm phillips PH2.

    • Don't forget to put them appart from the ones unscrewed before.

    • Don't forget to put them appart from the ones unscrewed before.

    • Phillips PH2

    • Flathead 2.5mm

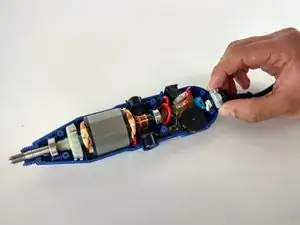

  7. FZlA6NGGaYAIT2eQ

    • Remove the place boar carefully.

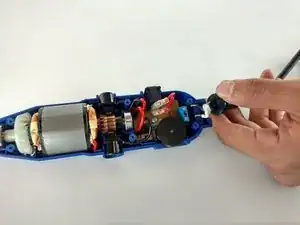

  8. HIB2EBnPFCChBdeC

    • Pull out the power cable connectors.

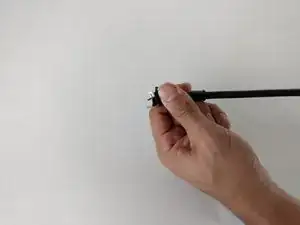

  9. qxnCQiwETNIcPwMn

    • Pull out the cord sleve for the new cable replacement.

Заключение

To reassemble your device, follow these instructions in reverse order.
