Wen 2307 Motor Replacement

Автор: Joshua Bowery
  • Комментарии: 2
Wen 2307 Motor Replacement

Сложность

Moderate

Шаги

10

Необходимое время

15 - 25 минут

Введение

If the device doesn't rotate, the motor could be bad. Use this guide to replace it.

  1. skEMWKMOu2MNrLAV

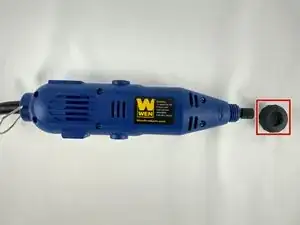

    • Unscrew the locking sleeve.

  2. FkWQdAgIBd1gwCqK

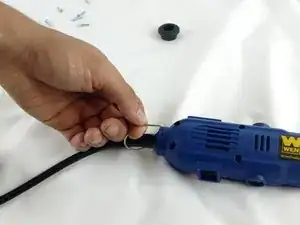

    • Remove the hanging clip.

  3. afJPUm6WITsGI1eE
    afJPUm6WITsGI1eE
    fn1OUSRIO2DxKuGa

    • Unscrew the six 8mm PH2 screws.

  4. 2EGrMcBLsQ5iSnPN

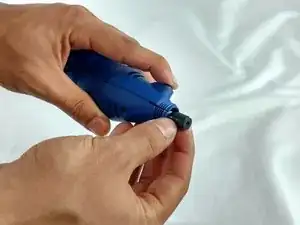

    • While pressing the spindle lock button, unscrew the collet nut and remove it along with the brass collet.

  5. WTj1SH1pmWKAYUJl

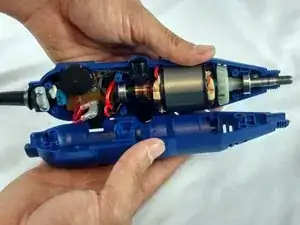

    • To remove the front panel, pry the device apart while holding the device with the other hand.

    • The front panel should come out easily.

  6. E6EkLdLAAi4qNMXe

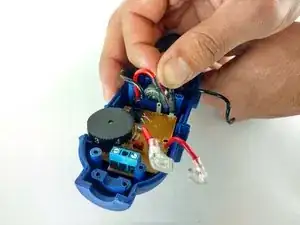

    • Remove the connected wiring from the circuit board.

    Cómo poner los carbones gastados

    Giovanni -

  7. MD1BLpgpEKS4CEfZ

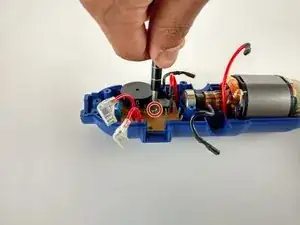

    • Remove the single 4mm screw retaining the circuit board.

  8. XZ4wrqxlrv4cO3ZK

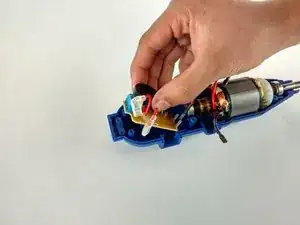

    • Gently pry the circuit board from the back piece.

  9. TmAIMldbZNJcMOa2

    • Gently pull motor assembly out of the panel.

  10. RVNjNLl5dIbeJcot

    • Motor separates into two pieces.

Заключение

To reassemble your device, follow these instructions in reverse order.
