Введение

If you need to replace a Brad Nailer Pressure Regulator Knob, follow the steps outlined in this guide. For this guide, you will need a 2mm Allen wrench. The steps outlined are relatively easy to follow.

Инструменты

  1. 2pb1NLHVptDIW4fV
    • Using a 2mm Allen wrench, remove the Allen screw located on the pressure regulator knob on the back of the brad nailer.

  2. C2lWDX1YXjKYHx1P

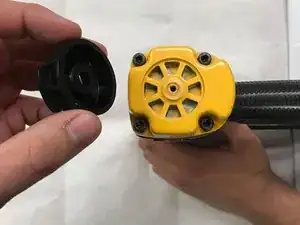

    • Remove the knob from the gun and replace the knob.

    • Be aware of the rubber spacer that will come off with the knob; when you replace the knob put the spacer back in the middle around the screw hole.

Заключение

To reassemble your device, follow these instructions in reverse order.
