Vtech Kidizoom Smart Watch DX Buttons Replacement

Автор: Mohammed Alyaarubi
  • Комментарии: 5
Vtech Kidizoom Smart Watch DX Buttons Replacement

Сложность

Difficult

Шаги

12

Необходимое время

20 - 25 минут

Введение

If the buttons are not working properly, this guide will help you replace them. Note: This guide requires soldering.

  1. XvXTq16eI1hk6jf1

    • Make sure the master switch is "OFF" before disassembly, to avoid an electric shock.

    • Flip the watch over with the back facing up.

    can you add some infomaton on what kids can do to fix it

    Kehinde Abiodun -

  2. G1RJlrYb3vNUIKkk

    • Remove the four 6.0 mm screws on the back plate with the Phillips #00 screwdriver.

    I can't get the last two screws off!

    Grant Garbe -

  3. W5wMmGAUfCPAWMuu

    • Gently pull the back plate from the watch casing.

  4. aRkGrp4sxDofQlrJ
    aRkGrp4sxDofQlrJ
    VJ4pBJ4iV2OGXiwm

    • Lift the master switch from the circuit board.

    My smart watch repair

    Somnath Sharma Sharma -

    My smart watch repaired

    Somnath Sharma Sharma -

  5. AL3UEDAvKiaAqkXm
    AL3UEDAvKiaAqkXm
    2XBHASxIknUcXLXq

    • The speaker wires are fragile. They may break if excessive force is used to remove the circuit board.

    • Removal of the circuit board requires soldering.

    • Gently push on the display from the front, near the camera. The circuit board and display will pop out through the back.

  6. fYsuBfU32VVVNdWT

    • Lift the circuit board carefully from the casing, without breaking or detaching the speaker wires at the bottom of the circuit board.

  7. fYnTfXlbyGdEPXYu

    • Note which wire is connected to which lead before continuing. There are no markers on the circuit board to indicate where each wire belongs.

    • De-solder the black speaker wire from the circuit board.

  8. HxJKpsRHRbARsUM4

    • De-solder the red speaker wire, as in the previous step.

  9. jep4m2n3AU2I3vYC

    • Wait for the solder to cool down and solidify, then remove the circuit board from the casing.

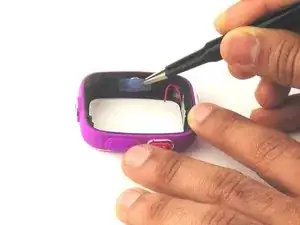

  10. Q52v3Zqob4MjvmwB

    • Use the the tweezers to pull off the blue rubber cover behind the button.

    • The blue cover is adhesive, so you can stick it back onto the back of the buttons after replacement.

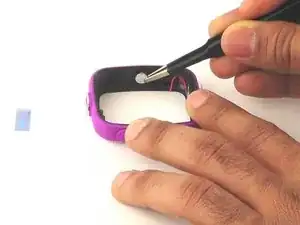

  11. naoJEpefwIL2EW6f

    • Use tweezers to separate the backside tab from the front side of the button.

  12. Jv2cL46XqeFK5qmV

    • Push the other half of the button out of the casing.

    • Repeat steps 11 and 12 for all buttons.

Заключение

To reassemble your device, follow these instructions in reverse order.
