Vivitar XO 7 Camera Replacement

Автор: Braanah Craig
  • Комментарии: 0
Vivitar XO 7 Camera Replacement

Сложность

Easy

Шаги

9

Необходимое время

5 - 8 минут

Введение

If you are experiencing problems with your device's front or rear camera, this guide will help you to remove and replace the faulty part. Both cameras are connected and are removed simultaneously.

  1. OvRGPKiHGbBtudYq

    • Remove the two 3mm Phillips #00 screws on the bottom of the tablet.

  2. iJ2gQkVey6kxMYcE

    • With the plastic opening tools, pry open the back cover.

  3. 2NTTgcZGErojPJrB

    • Remove the back cover from the tablet.

  4. LTC3CGUobuHcEt5r
    LTC3CGUobuHcEt5r
    StPFRSnenPgDSUEi

    • Peel off the black pieces of tape from the internal components.

  5. WqDWOcWnQBRFRYrG
    WqDWOcWnQBRFRYrG
    wksBePABcNZsA6sB

    • Carefully remove the battery from the tablet.

  6. IawMcTcF2MWxIkyg
    IawMcTcF2MWxIkyg
    dxxQqZBc2Qu1UmXc

    • With the tweezers, firmly grab the wire at the base and pull to disconnect the battery from the motherboard.

  7. PX2ci6fKJmdpCMUY

    • Peel off black tape that is holding the camera in place.

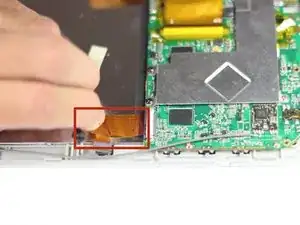

  8. kfYdBGtEYhZaDmH3

    • Carefully disconnect the ribbon cables from the motherboard.

  9. HYHDgWZBQqXSP4lk
    HYHDgWZBQqXSP4lk
    mnuTb1RhTah3omqj

    • Using the tweezers, firmly grab wires and pull to disconnect them from the motherboard.

Заключение

To reassemble your device, follow these instructions in reverse order.
