Vivitar XO 7 Battery Replacement

Автор: Barron Dillman
  • Комментарии: 1
Vivitar XO 7 Battery Replacement

Сложность

Easy

Шаги

6

Необходимое время

5 - 10 минут

Введение

Follow these simple steps to remove the battery from your device!

  1. OvRGPKiHGbBtudYq

    • Remove the two 3mm Phillips #00 screws on the bottom of the tablet.

  2. iJ2gQkVey6kxMYcE

    • With the plastic opening tools, pry open the back cover.

  3. 2NTTgcZGErojPJrB

    • Remove the back cover from the tablet.

  4. LTC3CGUobuHcEt5r
    LTC3CGUobuHcEt5r
    StPFRSnenPgDSUEi

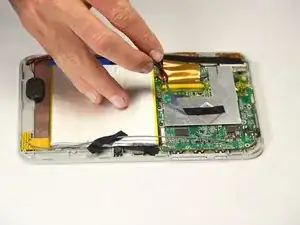

    • Peel off the black pieces of tape from the internal components.

  5. WqDWOcWnQBRFRYrG
    WqDWOcWnQBRFRYrG
    wksBePABcNZsA6sB

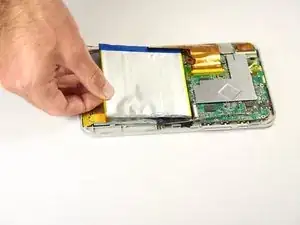

    • Carefully remove the battery from the tablet.

  6. IawMcTcF2MWxIkyg
    IawMcTcF2MWxIkyg
    dxxQqZBc2Qu1UmXc

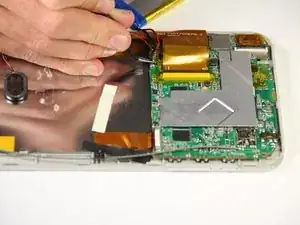

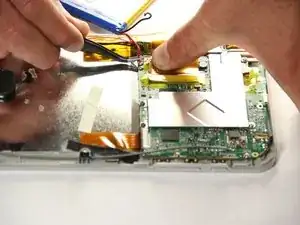

    • With the tweezers, firmly grab the wire at the base and pull to disconnect the battery from the motherboard.

Заключение

To reassemble your device, follow these instructions in reverse order.
