Vivitar Vivicam T027 Lens Replacement

Автор: Nicole Knoebel
  • Комментарии: 0
Vivitar Vivicam T027 Lens Replacement

Сложность

Moderate

Шаги

6

Необходимое время

30 - 45 минут

Введение

You will need a set of tweezers, a Phillips #00 screwdriver and a Phillips #000 screwdriver to replace your camera's lens.

  1. YgMFdQSuaaJJZUJY
    YgMFdQSuaaJJZUJY
    MdCoM4sJHHSFE5u3
    Mf5oLGVJgIWdGZ6X

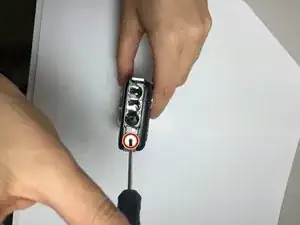

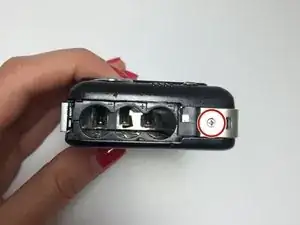

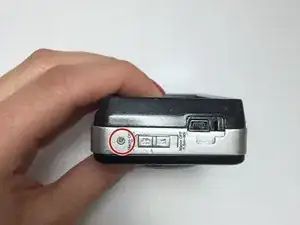

    • Use a Phillips #00 screwdriver to remove the 3 mm screws at the sides of the camera.

  2. VTpkEwMTUiafVRvD

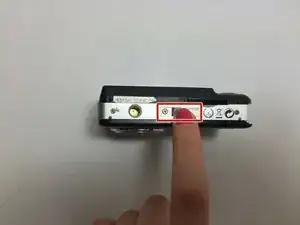

    • Remove sticker on top of camera as it covers a screw.

    • There are 5 screws to remove in total on the sides of the camera.

  3. dAlXDGk4lOGjVkhh
    dAlXDGk4lOGjVkhh
    EOBZQ5EoBaYMwkJS

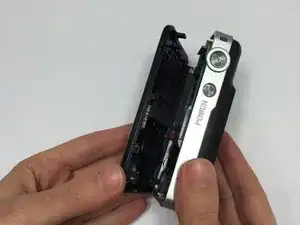

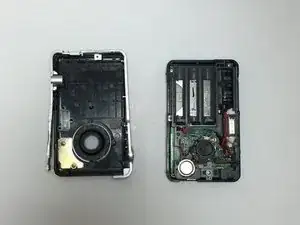

    • Separate the front piece of the camera from the back, revealing the motherboard.

  4. tYFlOcVhnRiuvil2
    tYFlOcVhnRiuvil2
    FmRhAhTWfisMYDRx

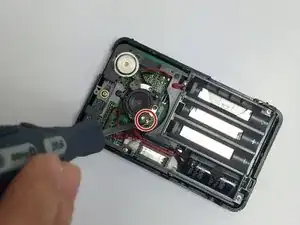

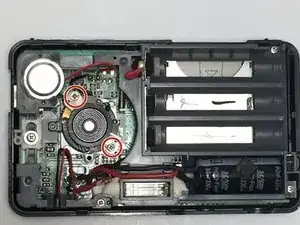

    • Use a Phillips #000 screwdriver to remove the two 2.3 mm screws that surround the lens.

  5. I1taumkylLBtHlEO
    I1taumkylLBtHlEO
    cR1RmoLcOkDIPDWW

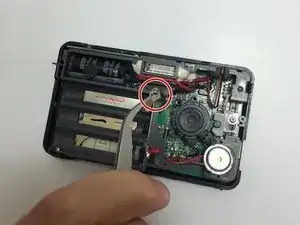

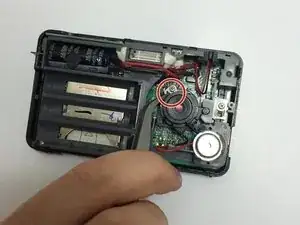

    • Remove the two silver plates using tweezers.

  6. R26E25M11an3ltbL

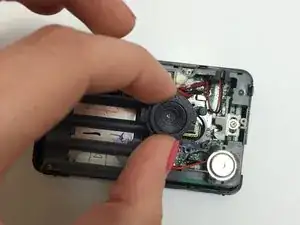

    • Remove the black lens carefully with your fingers.

Заключение

To reassemble your device, follow these instructions in reverse order.
