Введение

Button Replacement guide is taking the battery out of the VTech CS67192 phone to ensure safety. Then opening the back of the phone off by unscrewing the back of the phone which will give access to the buttons.

  1. p6Wmu36OGRrgBEB1
    p6Wmu36OGRrgBEB1
    1ZgGJSWtCTWfZkF3

    • Push down on the battery cover in the direction of the arrow located on the back of the phone.

  2. DBV2lKknUQaZTjOC

    • Pull the battery cover off of the back of the phone.

  3. GAAsHvSaIZsyQHIR

    • Unplug the battery input cable.

  4. IRCps2BEPXiYhbBP

    • Lift the battery out of the back of the phone.

  5. LKKoSFNYjxMyZMoN
    LKKoSFNYjxMyZMoN
    lONCbpA3PS3X2Nvy

    • Remove the two 9mm screws on the back side with a Phillips #0 screwdriver.

  6. wdb41INRVof5UR6e

    • Use the plastic opening tool and spudger to pry the back side of the phone off.

  7. kvXwUW2SP1PPR2cC
    kvXwUW2SP1PPR2cC
    dVRhrUxRgXGEXOSm

    • Remove the two 9mm screws located inside the back cover at the top.

  8. eU36XyhN3JDZnJrG

    • Remove the white sheet of rubber located between the circuit board and the buttons.

    • When removing the circuit board, the rubber sheet may fall off.

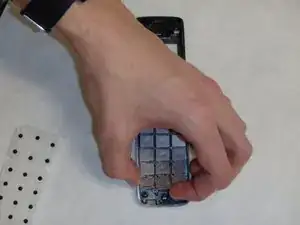

  9. dX6GJyxPpLtYIQbx

    • Remove the clear button keypad.

Заключение

To reassemble your device, follow these instructions in reverse order.
