Uniden UTAB71 Speaker Replacement

Автор: Ryan Jewell
  • Комментарии: 0
Uniden UTAB71 Speaker Replacement

Сложность

Difficult

Шаги

2

Необходимое время

20 - 25 минут

Введение

This guide will explain how to replace the internal speaker of a UTAB71.

  1. eN4nXgZJuFEkSCi4
    eN4nXgZJuFEkSCi4
    DcNGdADOZodSRFKv

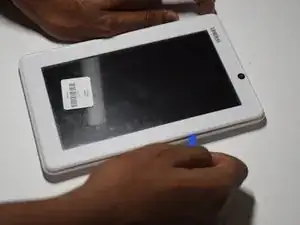

    • Use a plastic pry tool to undo the clips that attach the two halves of the tablet.

    • Make sure to be gentle with the pry tool and work your way around the edges of the tablet slowly.

    • Make sure the tablet is powered off before prying open.

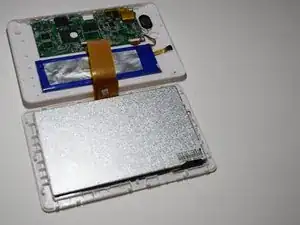

    • There are two power ribbons connecting the screen to the back of the tablet. Make sure not to put too much stress on them.

  2. 6DQIYaWtkIM4du4V

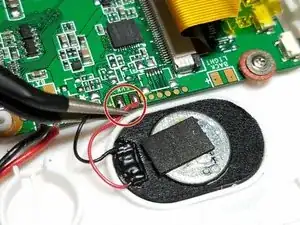

    • Use a soldering tool to disconnect the speaker wires off the motherboard.

    • If you have no experience in soldering, please follow this guide

Заключение

To reassemble your device, follow these instructions in reverse order.
