Turtle Beach Ear Force X12 Speaker Cone Replacement

Сложность

Difficult

Шаги

4

Необходимое время

30 минут

Введение

This is a replacement guide for Turtle Beach Ear Force X12's speaker cone.

  1. EGokeRi1axACFBDM

    • Gently pull on the pad from the side by the leathery material until it comes loose from slot.

    • Be careful not to rip the fabric.

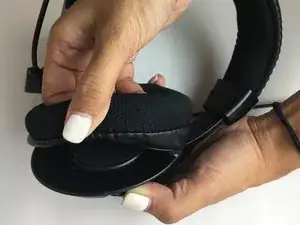

  2. ECVBZDMMJrbfMbho
    ECVBZDMMJrbfMbho
    s2HLcqbWNQE4fjZI

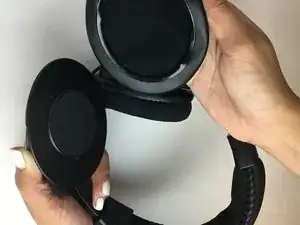

    • Carefully pull on cushion until it is separated from plastic.

    • The speaker cone is shown like the second image.

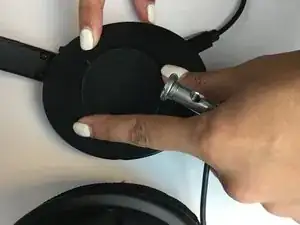

  3. kCMCmOaktgPgQwQU

    • Unscrew the 1.10 screws with T3 size screws that hold the front plate.

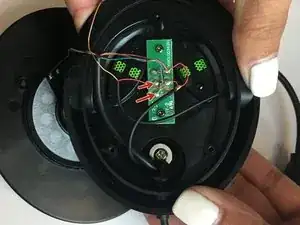

  4. cG1hT2dvTTOvkcHc

    • Inspect the wires for damage.

    • Desolder indicated wires.

    • Replace the speaker core by soldering the new cables, and then reassemble the headset.

Заключение

To reassemble your device, follow these instructions in reverse order.
