Trio Stealth-Mini Screen Replacement

Автор: Stewart Jenkins
  • Комментарии: 1
Trio Stealth-Mini Screen Replacement

Сложность

Moderate

Шаги

11

Необходимое время

30 минут

Введение

Tablet screens often get damaged, this guide will walk a user through the steps of replacing a damaged screen. It is important to be careful about damaging parts, as most pieces are fragile.

Инструменты

  1. LVxWX5NeBQgUVSdO
    LVxWX5NeBQgUVSdO
    XXfKPZoSY5siVGqA

    • Locate the indentation at the bottom of the device.

  2. GIRpVG2iWFBmvhKk
    GIRpVG2iWFBmvhKk
    kaHxSuIh43XI1vaE
    KDWwK1LVPbWZaHup

    • Pull on the indentation and take off the casing of the device.

  3. HbwvGLAXRjLfSCYR
    HbwvGLAXRjLfSCYR
    dRmqSayUI4AWia2i

    • Remove the faulty battery and insert a replacement in its slot.

  4. XYvMlD6RFRZHZa3T

    • Remove the six 2.4 mm, Phillips #0 screws circled in the image.

  5. RSqLNWWPtMlHY6fi

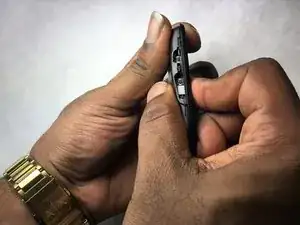

    • Remove inner casing exposing the motherboard.

  6. dQBkRGWoHW5wyCjd
    dQBkRGWoHW5wyCjd
    uFqEbMUuiVygJLHm

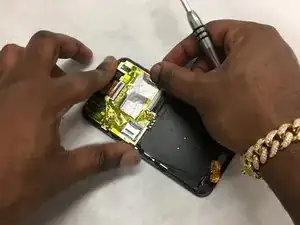

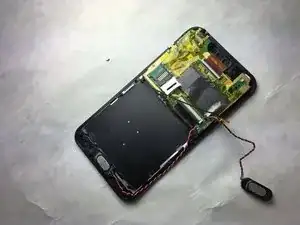

    • Remove speakers by peeling back yelllow tape.

  7. kFUlnv4ixPxPAdKQ

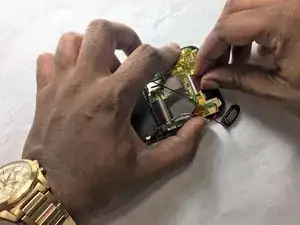

    • Remove ribbon cable on top of motherboard.

  8. 1hIDnpDkbIquku2N

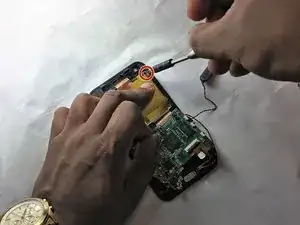

    • Peeling back yellow tape, remove the 2.5 mm Phillips #0 screws on top of motherboard.

  9. DANhlhjXhyNCRGhG

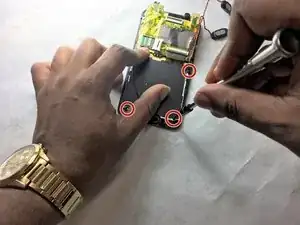

    • Remove the three 2.5 mm Phillips #0 screws attaching screen to main assembly.

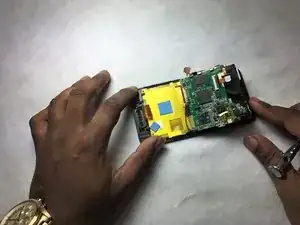

  10. F4Ayxk4LScMIYc6W

    • Verify that all screws are detached from screen.

  11. 4OrX6OUdPHVDjcCu

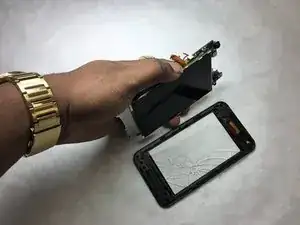

    • Detach screen from main assembly.

Заключение

To reassemble your device, follow these instructions in reverse order.
