Toshiba Satellite Radius P55W-B5220 USB/SD/headphone jack Replacement

Автор: Garrett barta
  • Комментарии: 0
Toshiba Satellite Radius P55W-B5220 USB/SD/headphone jack Replacement

Сложность

Very easy

Шаги

8

Необходимое время

Нет оценки

Введение

A guide to replace the SUB/SD card/headphone jack within your Toshiba Radius.

  1. MxiAMPxtQWoOGkFc

    • Turn off the laptop before starting.

    • Remove the two rubber feet closest to the hinge with a plastic opening tool.

  2. XIhENa2HVGEXAcSu

    • Remove the twelve M2x4mm PH0 Philips head screws.

  3. VmAKNLjysEUCRNpe

    • Loosen the back cover with a plastic opening tool.

    • The least damaging way to pry the cover is to start from a corner and run the spudger along the edge.

    • Do not crack or bend the cover.

  4. i61PqQtkbSEHRSqR

    • Carefully lift open the cover.

    • Remove the attached purple ribbon cable underneath the cover.

    • Do not rip the ribbon cable.

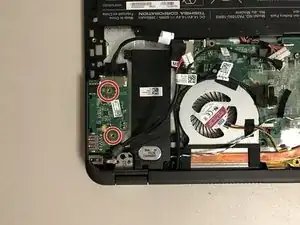

  5. cOyBpFpbDFvwwQTq

    • Unscrew the two screws holding the panel of the UBS/SD card/headphone jack

  6. NbiyYLHKuQjjPntW

    • disconnect the cable shown from the motherboard

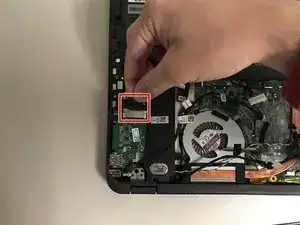

  7. HknLSM2CsPiLUrCQ

    • disconnect the cable attached to the top of the USB/SD card/headphone jack interface

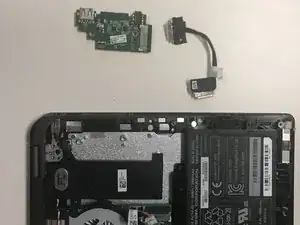

  8. ecVDbHDyt6XPOM3U

    • remove the interface

Заключение

To reassemble your device, follow these instructions in reverse order.
