Toshiba Satellite R15-S829 Disk Drive Replacement

Автор: Justin Slater
  • Комментарии: 0
Toshiba Satellite R15-S829 Disk Drive Replacement

Сложность

Very easy

Шаги

6

Необходимое время

2 минут

Введение

This guide will show you how to replace the disk drive. You may need to replace the disk drive if you can't read any CDs or DVDs.

Инструменты

  1. nFIoN6hJlpGIi26o

    • Unplug the charging cable from the laptop.

    • Turn off the laptop.

    • Turn the laptop over and locate the battery.

  2. XUJj44AYywYSXJxT
    XUJj44AYywYSXJxT
    JCbADdSm625M5Qdc
    2TFO1YSaBPH1PhjS

    • Push the small switch near the corner of the laptop to the unlocked position.

    • Push the bigger switch in the direction of the icon and pull the battery away from the laptop.

  3. DGiZoR6Mr2mQSXQP
    DGiZoR6Mr2mQSXQP
    ty4CNjQFDiZBF16w

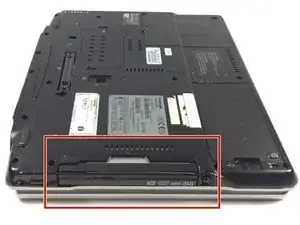

    • Locate the disk drive on the side of the laptop.

  4. NeCxIImTjW6ZuVLL

    • Locate the indent on disk drive on the backside of the computer.

  5. y2jKYRdKQmBlMLk2
    y2jKYRdKQmBlMLk2
    HCFyA4wTGbVWVxTC

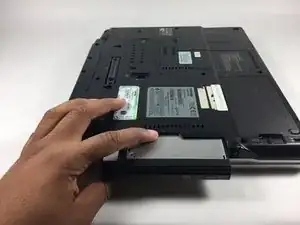

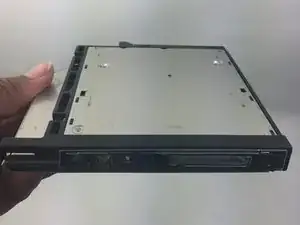

    • Use your hand to remove the disk drive by pulling outward.

  6. EAuPooSuFCmEPUCa
    EAuPooSuFCmEPUCa
    dDYCWxKvM12AXaIE
    uTxBcweiMLXDsoMf

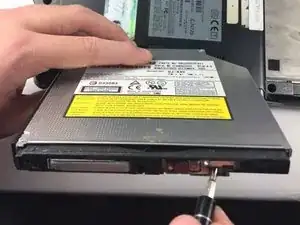

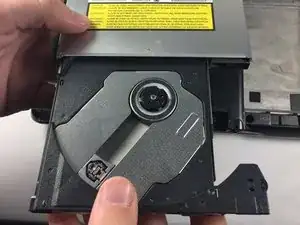

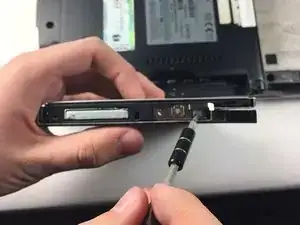

    • Push the end of a paperclip into the small hole on the disk drive to open it if there is a disk that is stuck in the drive.

Заключение

To reassemble your device, follow these instructions in reverse order.
