Toshiba Satellite P50W-C Hard Drive Replacement

Автор: Sarah Fordjour
  • Комментарии: 2
Toshiba Satellite P50W-C Hard Drive Replacement

Сложность

Easy

Шаги

6

Необходимое время

4 - 7 минут

Введение

Be careful to handle this device with care while performing this guide make sure to use use an anti-static wrist strap.

  1. hPtmChoDUGycnAhq

    • Turn the laptop off, unplug the AC adapter, and any other auxiliary components.

    • Turn over the laptop and proceed to take out the seven 5mm silver JIS #1 head screws. If some of the screws are difficult to take out use the tweezers to help.

  2. pw6NHvWLQLfDikyC

    • Use the screwdriver to take out the three 5mm black JIS #1 head screws that are located on the hinge.

  3. WRr45qBTeW2IUw6G
    WRr45qBTeW2IUw6G
    lGG5ioxJIQwMsESO

    • Use the spudger to pry under the back cover until it pops off.

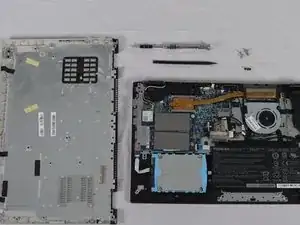

  4. KwU5u5rrKrb6MqNg

    • Remove the back cover of the device.

  5. uyLVHfbUJZaGd3ZN

    • Remove the hard drive from the device by gently pulling on the blue plastic hard drive cover.

  6. YweVNbBUtOIQ1gUg
    YweVNbBUtOIQ1gUg
    CMsNGlZP1FXI2OLR

    • Disconnect the hard drive from the mother board by gently pulling out the black connector.

Заключение

To reassemble your device, follow these instructions in reverse order.
