Введение

If your Toshiba Satellite L755-S5244 Optical Drive is not reading disks, then it should be replaced. The removal of or the replacement of the optical drive will require this guide.

Инструменты

  1. tRBZtWyKUyGg3Jgp

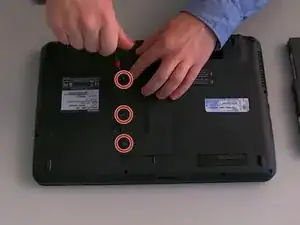

    • Before anything start by disconnecting the battery.

  2. oUI5dYw4siWRPwnc
    oUI5dYw4siWRPwnc
    EIFCPExvHgLAPRDw

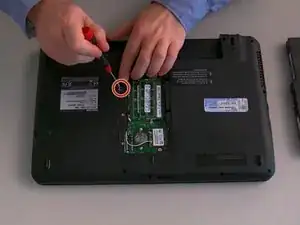

    • Next, unscrew the RAM cover and carefully remove it. Then, locate and unscrew the optical drive screw.

  3. CgGOCE1KofwijKiC

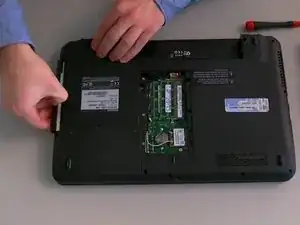

    • Carefully remove the optical drive.

  4. Zwf2WijGfpXyfGdv

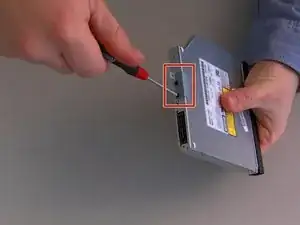

    • Finally, detach the mounting bracket from the optical drive in order to attach it to the new optical drive then follow the steps in reverse to reassemble it.

Заключение

To reassemble your device, follow these instructions in reverse order.
