Toshiba Satellite L755-S5244 Motherboard Replacement

Автор: Anthony Buschini
  • Комментарии: 0
Toshiba Satellite L755-S5244 Motherboard Replacement

Сложность

Difficult

Шаги

10

Необходимое время

5 - 15 минут

Введение

To replace the Satellite L755 motherboard you will need a Phillips (PH0) screwdriver. The motherboard is fragile and should not be bent or pried away from other parts or forced into place since it may break.

Инструменты

  1. sajt5gfLOXIhHeGP
    sajt5gfLOXIhHeGP
    Zb4alJkQfdEPePPs

    • Begin by unscrewing the screw located underneath the battery.

    • Then, unsnap and remove the bar above the keyboard.

  2. gOWaoCE2fRhP5WQX

    • Unscrew the four 4mm Phillips #0 screws beneath the bar.

  3. pekRVR4yQiu6YsIN
    pekRVR4yQiu6YsIN
    ifJEuYnkLyrNWFvL

    • Pull keyboard up and partially out.

    • Detach conductor ribbon.

    • Slide keyboard out completely.

  4. tRBZtWyKUyGg3Jgp

    • Before anything start by disconnecting the battery.

  5. oUI5dYw4siWRPwnc
    oUI5dYw4siWRPwnc
    EIFCPExvHgLAPRDw

    • Next, unscrew the RAM cover and carefully remove it. Then, locate and unscrew the optical drive screw.

  6. CgGOCE1KofwijKiC

    • Carefully remove the optical drive.

  7. Zwf2WijGfpXyfGdv

    • Finally, detach the mounting bracket from the optical drive in order to attach it to the new optical drive then follow the steps in reverse to reassemble it.

  8. RTeLy5UhJLNFEWfK

    • Carefully remove the 2 conductor ribbons.

    • Do not tear the yellow tape covering the upper conductor ribbon if possible.

    • The lower right ribbon may be removed at either the left or right ends by flipping up the black tab.

  9. ZyTVGjqApgIglAkJ

    • Remove the indicated conduit by gently pulling it away from the motherboard.

  10. YgMaANEnehbL4T32
    YgMaANEnehbL4T32
    ewRmJ4qTUuV3uWJN
    IDMeeRolMNnO2xi6

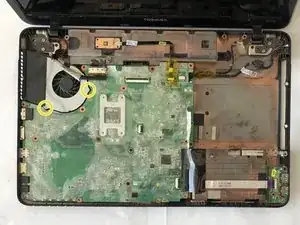

    • Remove the 5mm Phillips #0 screw in the middle of the motherboard, and the 4mm Phillips #0 screw on the upper left near the fan.

    • Remove the four 4mm Phillips #0 screws under the edge covering flaps.

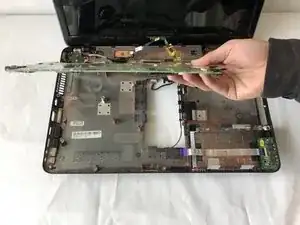

    • Carefully lift out the motherboard and fan.

    • To detach the fan, remove the two 2mm Phillips #0 screws.

Заключение

To reassemble your device, follow these instructions in reverse order.
