Toshiba Satellite L755-S5244 Keyboard Replacement

Автор: Matthew Sai
  • Комментарии: 1
Toshiba Satellite L755-S5244 Keyboard Replacement

Сложность

Easy

Шаги

3

Необходимое время

1 - 5 минут

Введение

If your Toshiba Satellite L755-S5244 keyboard will not respond as a whole, or if a significant amount of individual keys will not respond, it should probably be replaced.

Инструменты

  1. sajt5gfLOXIhHeGP
    sajt5gfLOXIhHeGP
    Zb4alJkQfdEPePPs

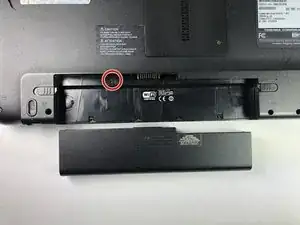

    • Begin by unscrewing the screw located underneath the battery.

    • Then, unsnap and remove the bar above the keyboard.

  2. gOWaoCE2fRhP5WQX

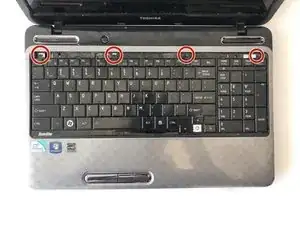

    • Unscrew the four 4mm Phillips #0 screws beneath the bar.

  3. pekRVR4yQiu6YsIN
    pekRVR4yQiu6YsIN
    ifJEuYnkLyrNWFvL

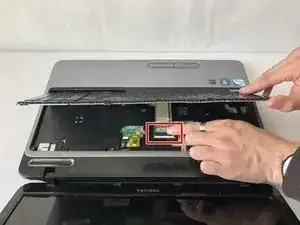

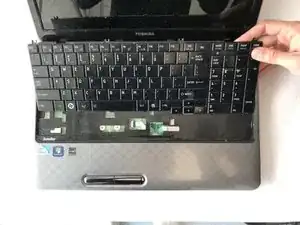

    • Pull keyboard up and partially out.

    • Detach conductor ribbon.

    • Slide keyboard out completely.

Заключение

To reassemble your device, follow these instructions in reverse order.
