Toshiba Satellite L40-A Fan Assembly Replacement

Сложность

Easy

Шаги

6

Необходимое время

2 - 5 минут

Введение

A guide to replacing a Toshiba L40-A CPU fan.

  1. CXEPBqXCx15VSgPh

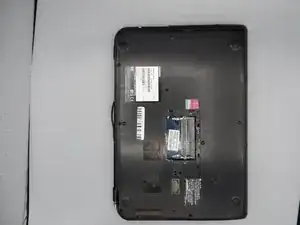

    • Flip open the laptop to access the back panel.

  2. ZFlDuJIJqmcMkCch

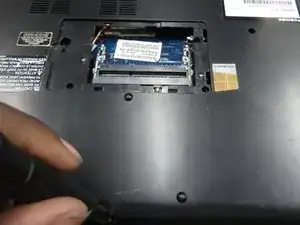

    • Use a Philips #0 screwdriver to unscrew the back panel.

  3. 2PjYtVsuas2xt4wt

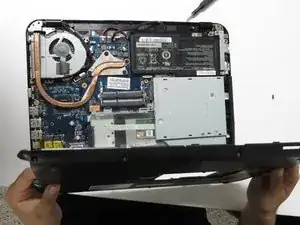

    • Use an opening tool to remove the back panel from the laptop.

  4. p4irkHYTuv2MhWDF

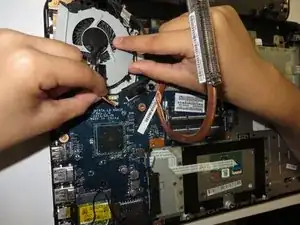

    • Disconnect the wire connecting the fan assembly.

  5. rYRBdrGGtDG1CMSv

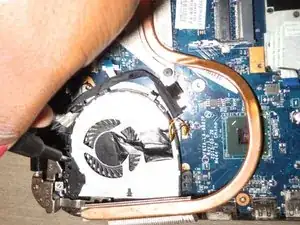

    • Unscrew the screws on located on the edges of the fan.

  6. GuwoCCa6ZPxRGDGO

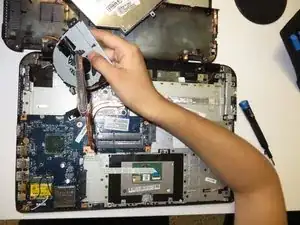

    • Carefully lift the fan out of the laptop.

Заключение

To reassemble your device, follow these instructions in reverse order.
