Toshiba Satellite L35-S2174 Battery Replacement

Автор: Amani Mitchell
  • Комментарии: 0
Toshiba Satellite L35-S2174 Battery Replacement

Сложность

Very easy

Шаги

4

Необходимое время

5 секунд

Введение

The underside Satellite L35-S2174 has a detachable 4-cell 2,000 mAH battery. You must remove the battery before attempting to repair the device for the safety of yourself and the device.

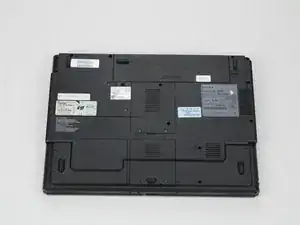

  1. gkAEmBCVLxVboGs2

    • Turn the laptop off to prevent the possibility of electric shock or damage to the computer.

    • Flip the laptop so that the bottom is facing upwards.

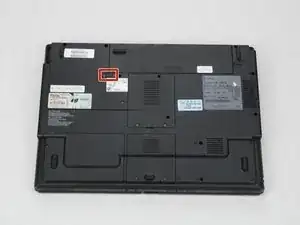

  2. fHfNKmhICXZq3Mey
    fHfNKmhICXZq3Mey

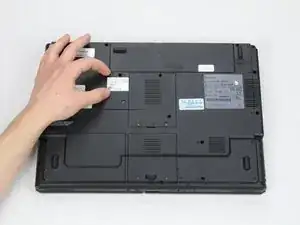

    vRfDP4ZCDuvPMvvp

    • Slide the battery lock switch to the left.

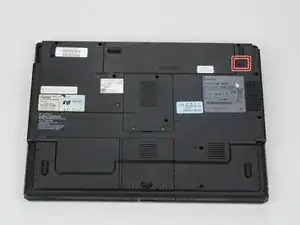

  3. lrL2UaEVVp6cEkiR
    lrL2UaEVVp6cEkiR

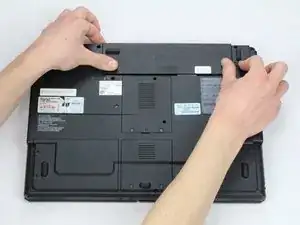

    nYEdCFOYduvqJWVX

    • Pull the sliding switch to the right and continue to hold it in this position.

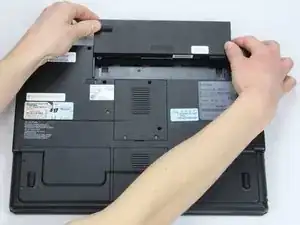

  4. eOamw5ETSR3QbheW

    • While holding the switch, slide the battery away from you.

    • You do not need to hold the switch when putting the battery back into the laptop.

Заключение

To reassemble your device, follow these instructions in reverse order.
