Toshiba Satellite E45t-B4300 USB HDMI Audio Circuit Board Replacement

Автор: Joshua Swanson
  • Комментарии: 0
Toshiba Satellite E45t-B4300 USB HDMI Audio Circuit Board Replacement

Сложность

Moderate

Шаги

8

Необходимое время

10 минут

Введение

Use this guide to replace a defective USB, HDMI, and audio jack circuit board in your Toshiba E45t-B4300.

  1. GTZrlYWCDWCnBeiF
    GTZrlYWCDWCnBeiF
    3Fegxq1HVAi6eltF

    • Power off your laptop before continuing.

    • Remove the following two 4mm screws with a Phillips #0 screwdriver.

  2. VLc2gTqPrtDh6jo4

    • Slide the battery out towards you.

  3. RFPZGwOdkHVnJCcm

    • Remove the following twelve 4mm screws with a Phillips #0 screwdriver.

  4. Uo6efJNiZTYeCnhs

    • Use a spudger to depress the six white clips connecting the plastic cover

  5. YRv2HIRvCqbZx2ET

    • Run the spudger or a plastic card around the entire laptop to release the rest of the clips.

  6. Tm6bGBIfRNfhPhJB

    • Remove the cover and set to the side.

  7. UOOiCTiNh2fCOrKN
    UOOiCTiNh2fCOrKN
    fpwMiqXsqwn5WJWX
    H4IJuOqXWg1kQpha

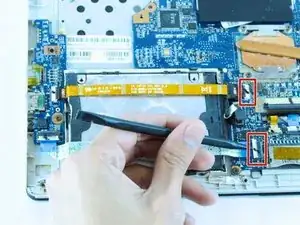

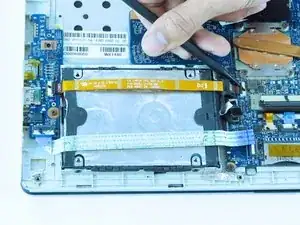

    • Use the point end of the spudger to lift the clips that attach the two ribbons to the motherboard.

    • Pull out the ribbons from the motherboard.

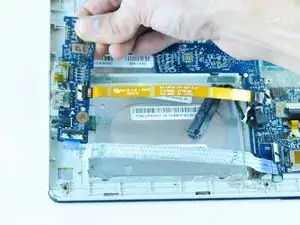

  8. h2IcOlwTExYOCxYx
    h2IcOlwTExYOCxYx
    l3R16BcS5CRpmpxZ

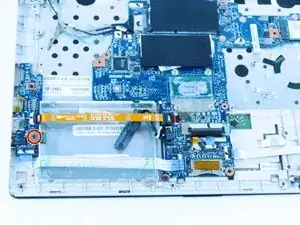

    • Unscrew the 2mm screw with a Phillips #0 screwdriver.

    • Remove the circuit board.

Заключение

To reassemble your device, follow these instructions in reverse order.
