Toshiba Satellite C855-S5115 Keyboard Replacement

Автор: Claire Fletcher
  • Комментарии: 4
Toshiba Satellite C855-S5115 Keyboard Replacement

Сложность

Moderate

Шаги

5

Необходимое время

15 минут

Введение

Sticking and broken keys means it might be time for a new keyboard. This guide will show you how to remove and replace you Toshiba's keyboard.

  1. 64JjdwAPOY6SImBY
    64JjdwAPOY6SImBY
    OFfCVOUPwlXj1LPN

    • Use two fingers to pull the ridged lock tabs on the bottom of the computer toward the edges. This will unlock the battery.

  2. sTWHXNMiTsMfKEPp

    • Holding the left tab in place, use the groove located between the two tabs to pry the battery up and out.

  3. 5LMjO1JwEWRiww1U

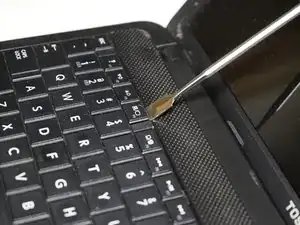

    5LMjO1JwEWRiww1U

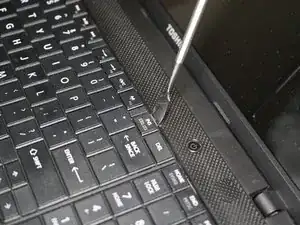

    cTUBd11pSbr3wlJI

    • Carefully separate the keyboard from its assembly by pulling it out with the opening tool.

    Use the tool on the user side of the board. See the connector below. Notice the small lndents on the very edge of the board to the right of the connector. That's where to use the tool on the left, right and bottom (user side). 7 on the user edge and 1 each on the left and right edges about a third of the way from the screen edge.

    igfar bullammy -

  4. VvPJKpd5fyNjCuIF

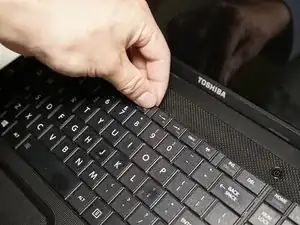

    VvPJKpd5fyNjCuIF

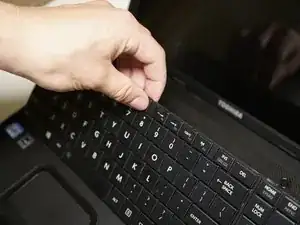

    16EU2H42mHoAkhU2

    • Pull out the keyboard gently and fold it backwards.

  5. mHTZAch5WMs5X2eJ

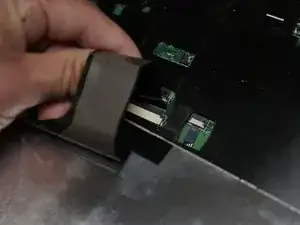

    mHTZAch5WMs5X2eJ

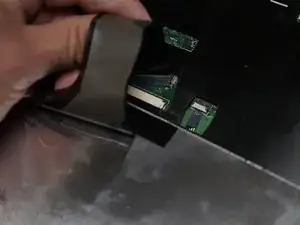

    2BS4l12hQ5V2Jy3P

    • Pull out the connector attaching the keyboard to the main body of the laptop.

    To remve the ribbon unlock the 2 small grey tabs on each end. The tabs are unlocked by gently moving them forward. GENTLY!

    igfar bullammy -

Заключение

To reassemble your device, follow these instructions in reverse order.

Автор

Claire Fletcher

Участник c: 05/04/18

988 Репутация

2 комментариев

C855D-S5900 pry up the bottom of the keyboard, not the top. Installation is reverse of removal, put top of keyboard in, then snap in bottom.

Brandon Bates -

Do you have to do anything with the connector before removing?

William -
