Toshiba Satellite C55Dt-A5306 CMOS Battery Replacement

Автор: Nahrain Putris
  • Комментарии: 0
Toshiba Satellite C55Dt-A5306 CMOS Battery Replacement

Сложность

Moderate

Шаги

6

Необходимое время

10 - 15 минут

Введение

This guide will show users how to replace the CMOS battery.

  1. VNyeYI3ANsVRtZXQ

    • Place fingers on the latches and slide outwards to unlock.

  2. XGOAEcjGlN4CrGgV

    • Remove battery.

  3. A5gQWk4J2kqQ144J

    • Using the Phillips Head #0 Screwdriver, remove one 3mm Phillips #0 screw as indicated.

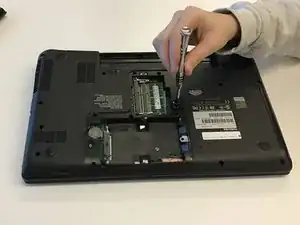

  4. XGrsOiHtEMYLdAD2

    • Remove hard drive cover.

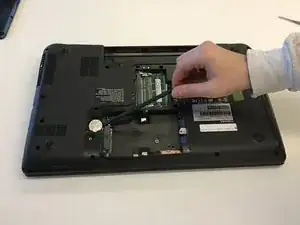

  5. XYjmGrV1VY1GuNOw

    • Using the plastic spudger, remove the CMOS battery, which had the letters DBV on it.

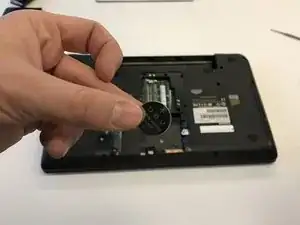

  6. P36OtVeCgcb2nUll

    • Replace CMOS battery.

Заключение

To reassemble your device, follow these instructions in reverse order.
