Toshiba Satellite 1805-S177 Hard Drive Replacement

Автор: Hannah
  • Комментарии: 1
Toshiba Satellite 1805-S177 Hard Drive Replacement

Сложность

Easy

Шаги

4

Необходимое время

3 - 5 минут

Введение

This guide tells you how to replace the current hard drive in the laptop with one of better storage or functionality.

Инструменты

  1. uBHkHGbPxbdhPjI6
    uBHkHGbPxbdhPjI6
    EpXZERiZo2KKxaeN

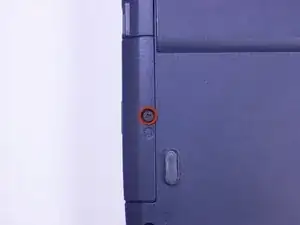

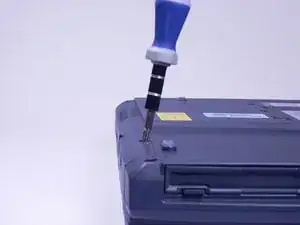

    • Look at the bottom of the laptop. Using a Phillips screwdriver, unscrew and remove the screw labeled F4, located on the cover of the hard drive.

    • The hard drive is located next to the CD drive.

  2. NObvwD1BCX5YQSvV

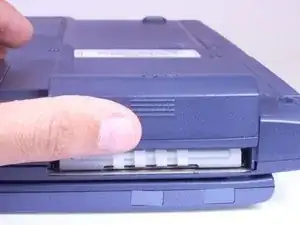

    • Placing your finger on the raised grip, push up on the hard drive cover. This will remove the hard drive cover from the laptop.

  3. opIaCbEIcwK3DXED
    opIaCbEIcwK3DXED
    hEjlWCOfmBKmBXUU

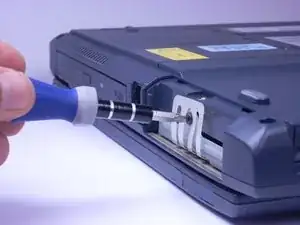

    • Using a Phillips screwdriver, unscrew and remove the screw surrounded by the white plastic.

  4. TDWFxpcKeXoEoCRP

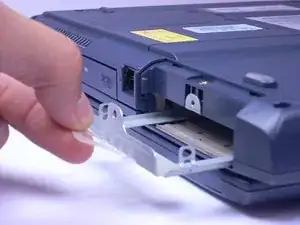

    • Pull the white plastic out toward you. This should remove the hard drive tray from the laptop.

    • This laptop does not have a hard drive, so the tray is empty. On your computer, the hard drive should be in the tray.

Заключение

To reassemble your device, follow these instructions in reverse order.
