Toshiba NB305 Wifi Card Replacement

Автор: Mateo Fontana
  • Комментарии: 0
Toshiba NB305 Wifi Card Replacement

Сложность

Moderate

Шаги

8

Необходимое время

15 - 30 минут

Введение

We will show you how to find and remove the wifi card. This is a simple procedure and only requires a few steps.

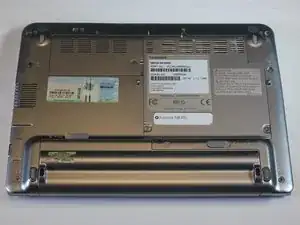

  1. lMMCteaRVakSxube

    • Place the laptop upside down with the battery facing you.

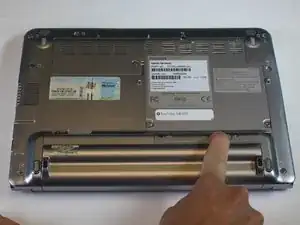

  2. wCGiNstv3FwV3ZLV

    • Use your right hand to move latch 1 to the right to unlock the battery.

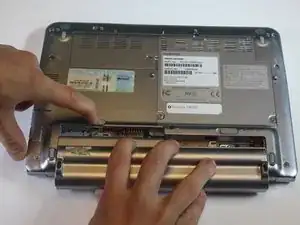

  3. dcSIFQoC5hVkPD2L
    dcSIFQoC5hVkPD2L
    kvWbiZXIt3qK6SYa

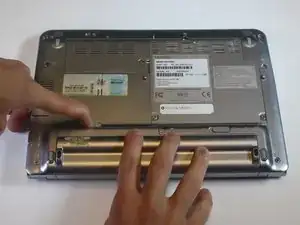

    • Use your left hand to hold latch 2 to the left.

    • Simultaneously take the battery out with your right hand.

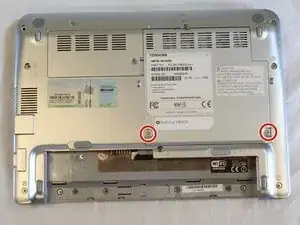

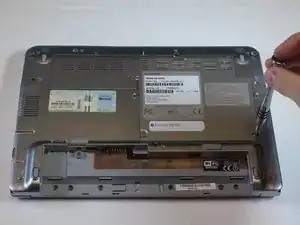

  4. khUVuGDCrp3GRSMR
    khUVuGDCrp3GRSMR
    NJFbEOBW4she5nTr
    CuEo1cgVpVmkUWfm

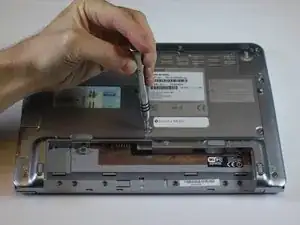

    • Locate the two torx T-6 screws on the back of the laptop and remove them.

    • 6mm Torx T-6 Screws

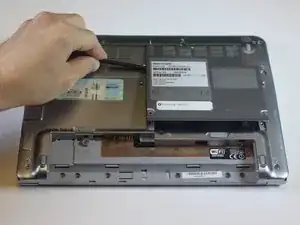

  5. O4jcFxJQNF5rPmQD
    O4jcFxJQNF5rPmQD
    L32SAsEA3xILbTxR

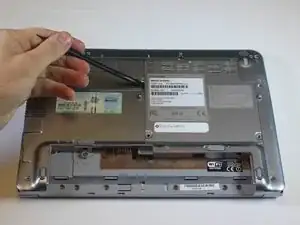

    • Using a spudger pry the panel up.

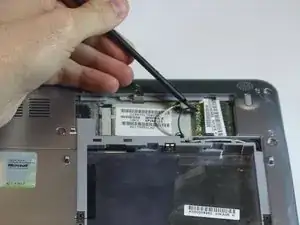

  6. ARLbmqNZfJBMbaRw
    ARLbmqNZfJBMbaRw
    qAZT1UmnycNhYlbF

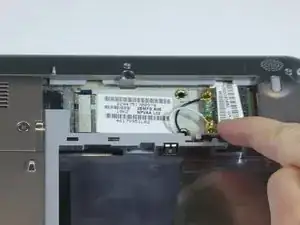

    • Using a spudger pry up and off the two wire connections.

    • Note that the black wire is on the top of the card and the white is the bottom.

  7. TgJh41YRvVKqUwiX
    TgJh41YRvVKqUwiX
    miJVoorEFcy3JKF3

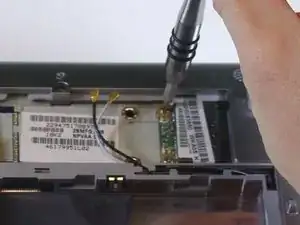

    • Remove the two Phillips 0 size screws on WIFI card.

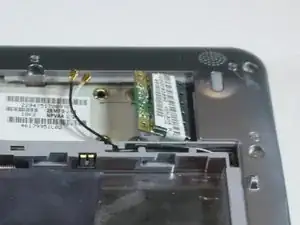

    • Once the screws are removed the WIFI card will raise up

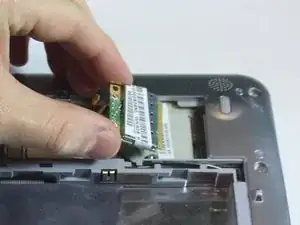

  8. IrgprBsxwBEqvVXF
    IrgprBsxwBEqvVXF
    iRIpiYHWyQEINPRM

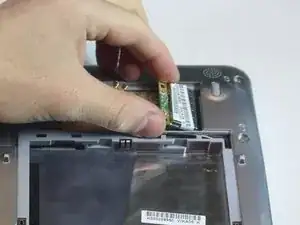

    • Grip both sides of the wifi card with your hand.

    • Lift up on the card and pull the card out of the slot

Заключение

To reassemble your device, follow these instructions in reverse order.
