Toshiba Encore WT8-A Tablet Camera Replacement

Автор: Melanie Mestre
  • Комментарии: 0
Toshiba Encore WT8-A Tablet Camera Replacement

Сложность

Moderate

Шаги

8

Необходимое время

Нет оценки

Введение

  1. vJIAQQqeEtoFddlI

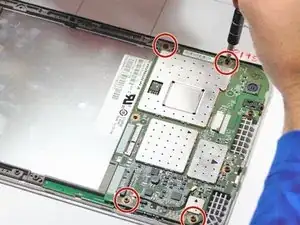

    • Remove the 4 – 4.5 mm screws from the motherboard assembly.

  2. ZrLWGTAjIGqoJQmK

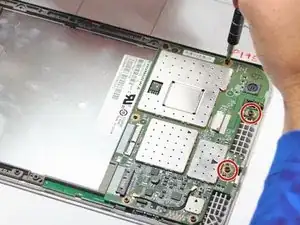

    • Remove the 2 – 3.5 mm screws from the motherboard assembly.

  3. MEmymdGtNxbnGj26

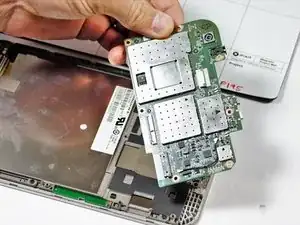

    • The motherboard should come free at this point.

  4. KRuAYjRhOPBYIm5i

    • Use small plastic opening tool for the following steps.

  5. ZEjsdwrWYkFyOJZQ
    ZEjsdwrWYkFyOJZQ
    xmkEMcfixwZFiulP

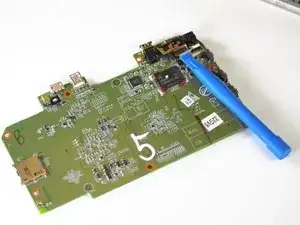

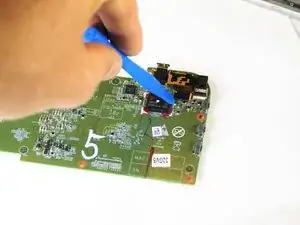

    • Use small plastic opening tool to pry rear facing camera flat top connector from motherboard.

  6. ATBKI1VEXVNoRAqv

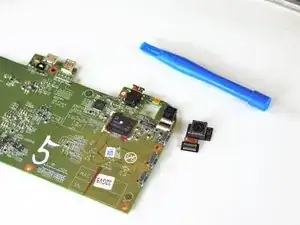

    • The rear facing camera should come free at this point.

  7. sJxtW52CsupHADnB

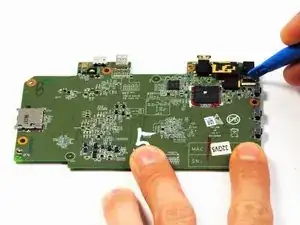

    • Use small plastic opening tool to pry front facing camera flat top connector from the motherboard

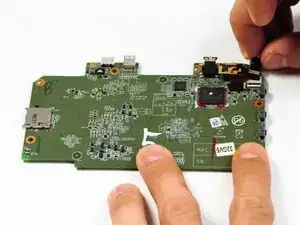

  8. CLEqWk1nPjApNy1c
    CLEqWk1nPjApNy1c
    WvdMEbfBPENmvxSh

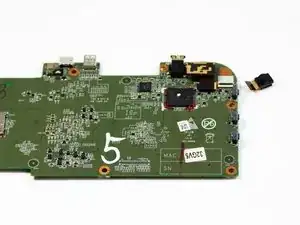

    • The front facing camera should come free at this point.

Заключение

To reassemble your device, follow these instructions in reverse order.
