Toshiba Encore Mini Speakers Replacement

Автор: Khaled Alsaghayer
  • Комментарии: 0
Toshiba Encore Mini Speakers Replacement

Сложность

Moderate

Шаги

7

Необходимое время

15 минут

Введение

The following guide shows detailed steps to remove the onboard speaker from a Toshiba Encore Mini. Be sure to back up data to an external device before attempting any component replacement.

  1. S1GQcwhJHWql1ILL
    S1GQcwhJHWql1ILL
    aJLt2PWMPnHkl1Xk

    • To replace the battery, the rear cover must first be removed.

    • Using the flat end of the spudger, gently pry open the back case from the rest of the device.

    • It may be easier to start along one of the long edges and carefully work your way toward the corner, then along the short edge.

  2. HIQYHifSqVMSoxCc

    • Remove the rear cover and set it aside.

  3. 1mK1tvZdytkgeDLC

    • Carefully remove the electrical tape that holds the battery in place.

  4. cxwQ2eVdPCOcESNO
    cxwQ2eVdPCOcESNO
    6n6TgV3CXoNeDcfr

    • Using needle-nose tweezers, gently push the large white wire connector (connected to the black, red and blue wires) out of its housing.

  5. YMnYA6lcHQcXFCN4

    • Gently lift the battery out of the device.

    • Be careful not to pull on the connecting wires.

  6. CJ6NQSo5DUv2D15Y

    • Use the spudger to pull the speaker wire plug from its socket.

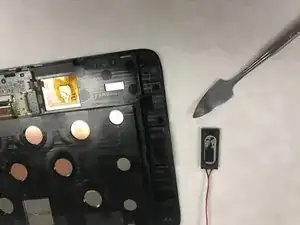

  7. ek5rXUoPmBMD3mqq

    • Carefully use the metal spudger to remove the speaker from the frame of the phone.

    • The speaker is attached with some double-sided adhesive and may be difficult to remove.

Заключение

To reassemble your device, follow these instructions in reverse order.
