Toshiba CB35-C3300 Chromebook 2 Back Cover Replacement

Автор: Jillian Thomas
  • Комментарии: 1
Toshiba CB35-C3300 Chromebook 2 Back Cover Replacement

Сложность

Easy

Шаги

4

Необходимое время

Нет оценки

Введение

Removing the back may be the easiest thing to do, however do not forget about the screws hidden under the rubber foot pads!

  1. tjAoNDvXqnRc52AI
    tjAoNDvXqnRc52AI
    P3hyiwkXjdqoBIYY

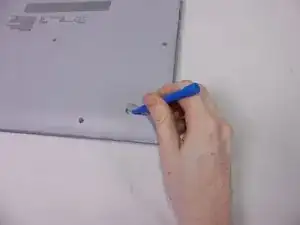

    • Remove the 2 rubber foot pads from the bottom (opposite the hinge) with the small Plastic Opening tool.

  2. MIWQRqhRwDyQWtxo
    MIWQRqhRwDyQWtxo
    WOfnMkYrT1nKAdCR

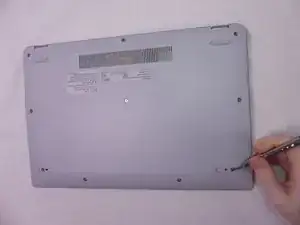

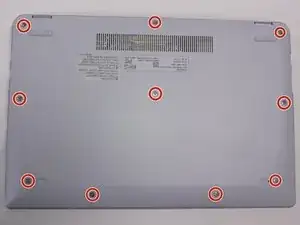

    • Remove the 10 7.1 mm screws using Phillips #1 screwdriver.

  3. TBsqDRe3AXDsiPTY

    • Loosen the back cover by using a plastic opening tool all the way around the device.

    • There are areas all along the sides of the device that help aid in this.

    • Be careful when prying, and go slow. The silver plastic frame around the dull gray plastic bottom is fragile and easily dented from prying pressure.

    I have the UK model and I found Fascinating Captain’s method for removing the back cover to be simplicity itself:

    https://www.youtube.com/watch?v=JcZ711cx...

    Rob Butler -

  4. Nv6SXDZGMOZMeOmT
    Nv6SXDZGMOZMeOmT
    NTMmKP62dOsTMqda

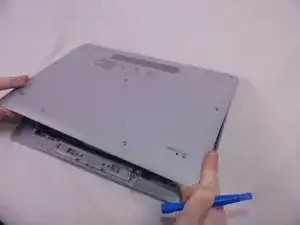

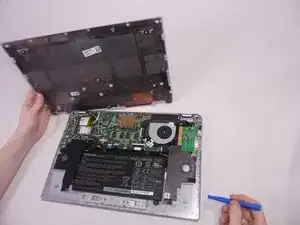

    • Remove the back cover by gently lifting up on one side of the device.

    • The easiest side to lift up on is the one with the removed rubber foot pads.

Заключение

To reassemble your device, follow these instructions in reverse order.
