Titan High Pressure Airless Sprayer Elite 3000 Inlet Valve Replacement

Автор: Alex Diaz-Kokaisl
  • Комментарии: 0
Titan High Pressure Airless Sprayer Elite 3000 Inlet Valve Replacement

Сложность

Moderate

Шаги

6

Необходимое время

10 - 30 минут

Введение

Use this guide to replace the inlet valve in the Titan Elite 3000 High Pressure Airless Sprayer.

  1. DZVXUdZWlK1PChQX
    DZVXUdZWlK1PChQX
    ZZSoXVbu3UbpdlDD
    QcuIZiG21YXA2P4R

    • Before you begin, make sure to follow the pressure relief procedure documented in the user manual before powering down the paint sprayer and disconnecting the pump.

    • Turn off and unplug the sprayer.

    • Lay the sprayer down horizontally before continuing.

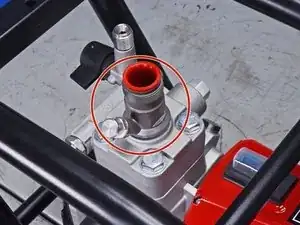

  2. kkpTbYTWyZDJaUcO
    kkpTbYTWyZDJaUcO
    Ju2vDjLQLmO6HaEV
    GSOvZfSJQbTFXTpS

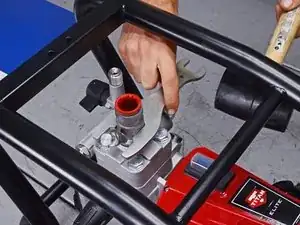

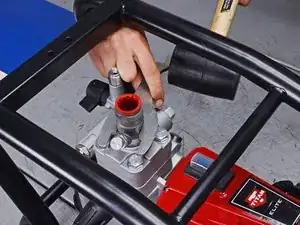

    • Use the included 30 mm wrench, or any 30 mm wrench, to loosen the inlet valve housing.

    • If you're having trouble loosening the housing, use a mallet to tap the end of the wrench.

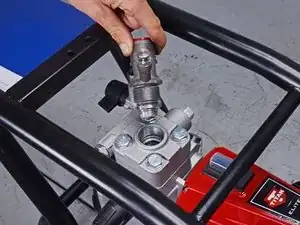

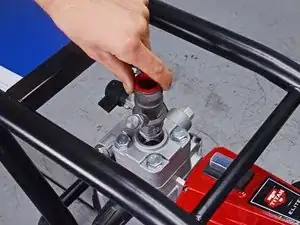

  3. Aga6MgGKfFdTZTYt
    Aga6MgGKfFdTZTYt
    e2x1bLCfDAe5ecJU
    aUCMqf6pA6gL6pOT

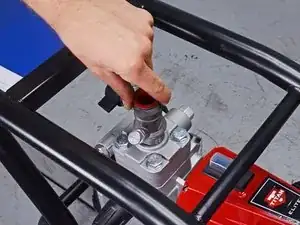

    • Remove the inlet valve housing.

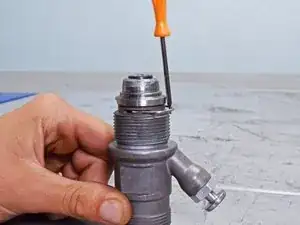

  4. 3qs1kXNdI252FUar
    3qs1kXNdI252FUar
    FYElPYC3nnhd4qxg
    NSaovTjbs2xrELZF

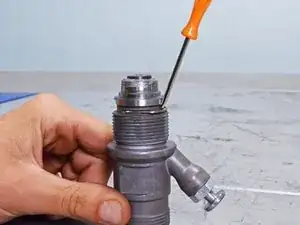

    • Use a flathead screwdriver to pry and remove the clip securing the inlet valve.

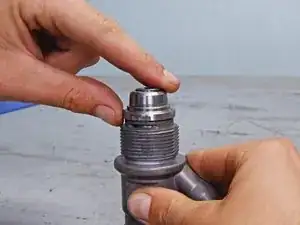

  5. EASGYNI3Pf2VXjCt
    EASGYNI3Pf2VXjCt
    WVVDyP2ibwGISCYU
    mabWaQqFfQSaHIHT

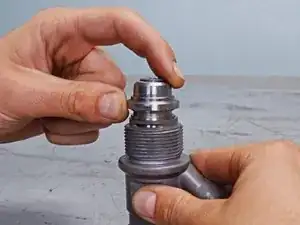

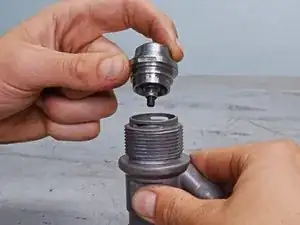

    • Use your fingers to pull up and remove the inlet valve from the bottom of its housing.

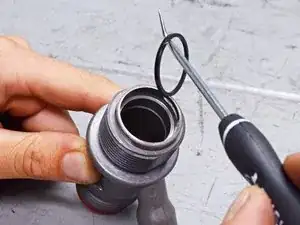

  6. nw5CELiSMgOKksZh
    nw5CELiSMgOKksZh
    LVpS2XUh2PloOdaI
    V2wRfjdDSOgOlFDA

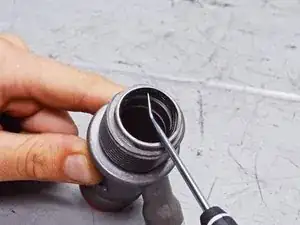

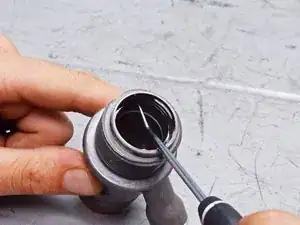

    • Use a pick tool to remove the O-ring from the inlet valve housing.

Заключение

To reassemble your device, follow these instructions in reverse order.
