Thrustmaster T3PA Pedal Spring Replacement

Сложность

Moderate

Шаги

4

Необходимое время

5 - 10 минут

Введение

This guide applies to all of the pedals of the T3PA. I only used the gas pedal as an example.

  1. 1sIE4PVQbHH4lO2L
    1sIE4PVQbHH4lO2L
    oCNHOASCNVFJm1kY

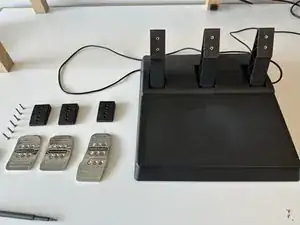

    • Start by removing the screws in the pedal that you are changing with a Torx t10H screwdriver.

  2. qtSBo23CFrAKm1B2
    qtSBo23CFrAKm1B2
    BNknUBr3veEuP6yE

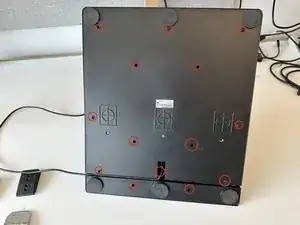

    • Remove the 14 Screws on the back with a PH2 Phillips head screwdriver and carefully pop it off.

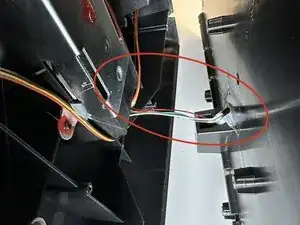

    • (DO NOT COMPLETELY PULL IT OFF BECAUSE OF WIRES, INSTEAD UNPLUG IT)

  3. OKJ3uGSwdDRGDbhi

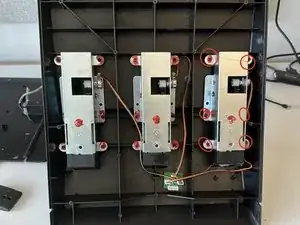

    • Once open, remove the 6 screws holding the pedal in place with the same PH2 screwdriver. Then pull out the pedal.

    • NOTE: DO NOT UNSCREW THE MIDDLE SCREW, IT KEEPS THE SPRING IN PLACE.

  4. vRxKnXrLDpoPMxZV
    vRxKnXrLDpoPMxZV
    kVI2MbU54H5d2C3N
    QxkQCAkDf5CqjUq5

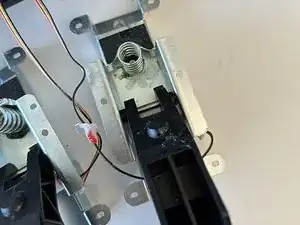

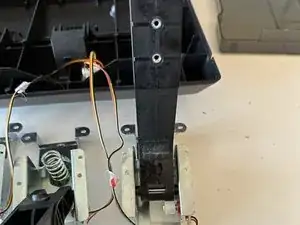

    • Once it has been removed, pull the pedal forward and simply remove the spring.

    • NOTE: BE CAREFUL WITH THE GREASE, WASH YOUR HANDS ONCE YOU HAVE TOUCHED IT, DO NOT TOUCH YOUR EYES OR FACE WITH IT ON YOUR HANDS.

    Very helpful guide, helped me to replace my spring on my T3PA GT pedals, thank you very much!

    Storm -

Заключение

For reassembly, simply follow the steps in reverse.
