Thrustmaster T Flight Hotas 4 Throttle Rudder Replacement

Автор: Julissa Orozco
  • Комментарии: 1
Thrustmaster T Flight Hotas 4 Throttle Rudder Replacement

Сложность

Easy

Шаги

5

Необходимое время

10 минут

Введение

The throttle on the controller aids in acceleration. This guide will show you how to replace the rudder found on the throttle allowing for easier steering.

Инструменты

  1. bB3dHqa4NPQ2UgYq

    • Be sure to disconnect the controller from the power source before disassembling.

    • Remove the five 15 mm J1 JIS head screws from the front of the throttle.

  2. 6WQxOsrrtPAYM6Sl
    6WQxOsrrtPAYM6Sl
    k5mfXRq3QZTlJGQB

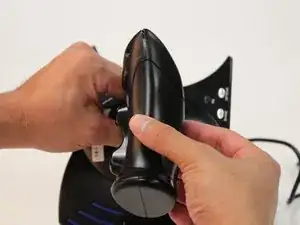

    • Be sure to disconnect the controller from the power source before disassembling.

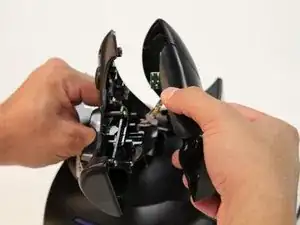

    • Using your hands, pull away the panel from the throttle.

  3. gwTfUDEHyVVLGJ4L
    gwTfUDEHyVVLGJ4L
    meBqesRBaCFOfQ1B

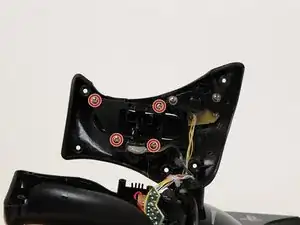

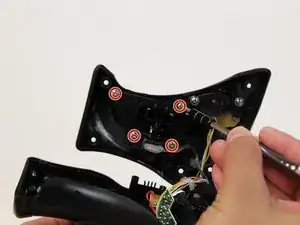

    • Remove the four 13 mm J1 JIS head screws from the rudder assembly holder.

  4. WfsQYhUbFrPoYvd2

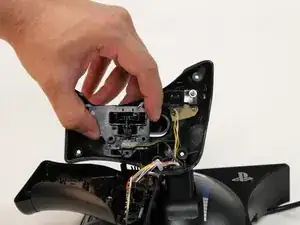

    • Gently remove the panel that is covering the rudder.

  5. KH6NOWx1sq53oBDR

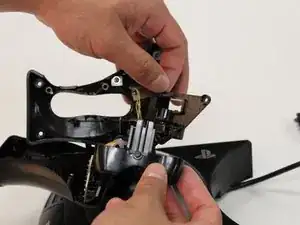

    • Proceed to remove the rudder from the throttle.

Заключение

To reassemble your device, follow these instructions in reverse order.
