The Beatles Rock Band Drum Set Front Button Replacement

Автор: Zach Richter
  • Комментарии: 0
The Beatles Rock Band Drum Set Front Button Replacement

Сложность

Moderate

Шаги

4

Необходимое время

10 минут

Введение

This repair guide requires you to be more careful when it come to working around the wires that you will find. You will also need to unscrew some screws in the process. Be careful when removing the module and pay extra attention to where you put your screws.

  1. D35Y5YkKV5dZMqlv

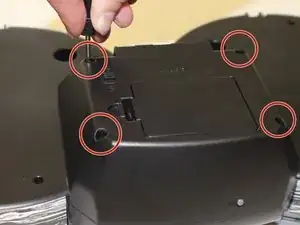

    • Remove the four Phillips size J1 screws from the corners of the bottom module.

    • Removing the screws requires a thin screwdriver.

  2. 5niLjtWgrbcBon1r
    5niLjtWgrbcBon1r
    1lGjwRGfUcXNvBJF
    1YCsKZDLHn6RLErW

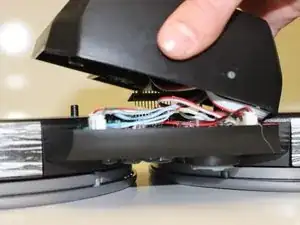

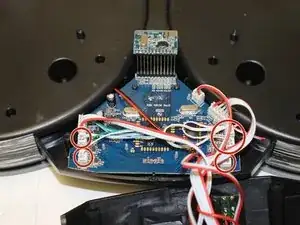

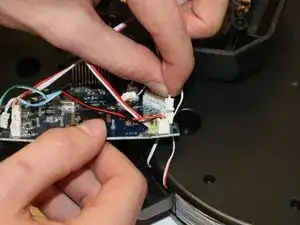

    • Open the bottom module. Disconnect the five wire clips as shown in the pictures.

  3. rBcCwU4RCTiVnDFG
    rBcCwU4RCTiVnDFG
    2SuYUH5RTrqb6gLU

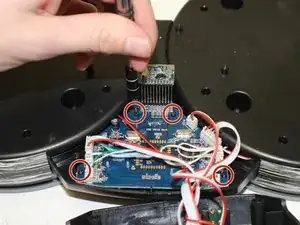

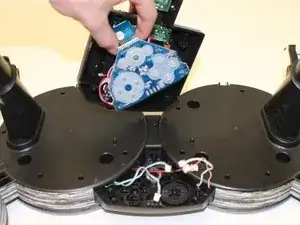

    • Remove the four Phillips #1 sized screws holding the main circuit board. Rotate the board up and out, exposing the buttons.

  4. DEEL2Rpftvfb2XdJ

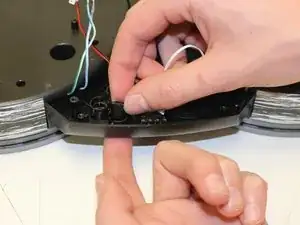

    • The buttons can be pushed up from the bottom to be removed.

Заключение

To reassemble your device, follow these instructions in reverse order.
