TI-30-XB Battery Replacement

Автор: Jordan Dann
  • Комментарии: 1
TI-30-XB Battery Replacement

Сложность

Easy

Шаги

4

Необходимое время

5 - 15 минут

Введение

Follow this guide to remove and replace the battery for the TI-30-XB

  1. efcd26xmaJ1mwPm2
    efcd26xmaJ1mwPm2
    wLnVVhq5V2QBRrOk

    • Remove the 6 screws on the back.

  2. 44eDYdTFZQAXEATY
    44eDYdTFZQAXEATY
    fS3PaDxSIT4kSHZs
    34jKNNXDNa4kV1Zw

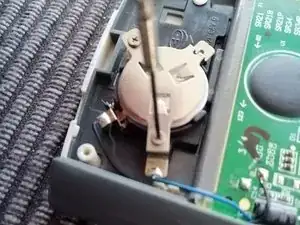

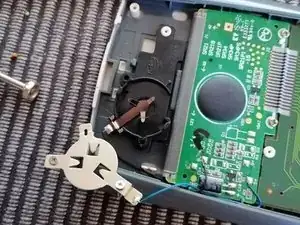

    • Remove the 2 screws holding the battery

    • Eject the battery

  3. NhDgnxejyWZsMMGE
    NhDgnxejyWZsMMGE
    JhAOQAIbHdqZFNF5

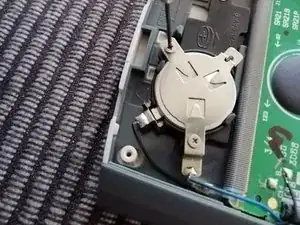

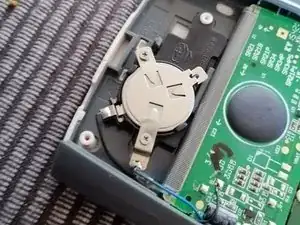

    • Make sure you put back in the correct battery! Check the old battery's type/ code and buy such one. Never buy a different type of battery.

    • Put the new battery in.

  4. GJhBElCiFKv2CKKC
    GJhBElCiFKv2CKKC
    5vDdxalrZUtpbFDF
    eApujg2JchRGdEwm

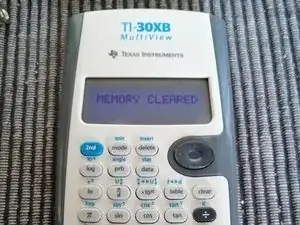

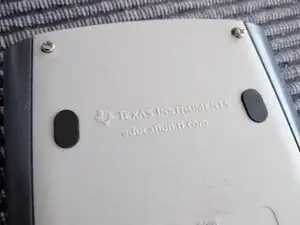

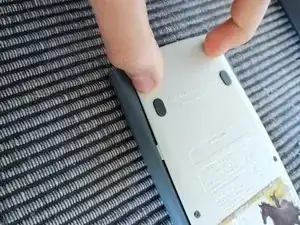

    • Replace the back plate and screw the 6 screws back in.

Заключение

To reassemble your device, follow these instructions in reverse order.

Автор

Jordan Dann

Участник c: 31/10/16

254 Репутация

Один комментарий

if the calculator won't work after changing the battery, press the reset button.

Floris Van Lierde -
