Sony Walkman NWZ-E438 Headphone Jack Replacement

Автор: Cheryl Zinn
  • Комментарии: 2
Sony Walkman NWZ-E438 Headphone Jack Replacement

Сложность

Moderate

Шаги

5

Необходимое время

Нет оценки

Введение

  1. vQSb4sNqDikSihtU

    • Unscrew the two screws on the back of the device using a Phillips PH000 screwdriver.

    • Keep the Phillips PH000 screwdriver aside for further steps in the guide. It will be the only screwdriver needed for this replacement.

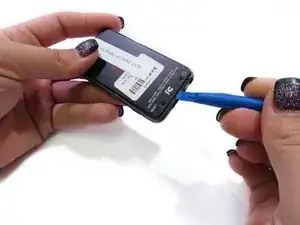

  2. l3UtXVHPL6KWviBn

    • Use a small prying tool to carefully pry open the back of the device.

  3. ljnYJg3oHLGdWaxh

    • Unscrew the 1 screws around the headphone jack using Phillips PH000 screwdriver.

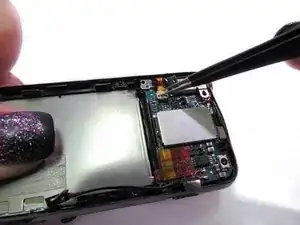

  4. X2Ooxt4ERn4IWhPG
    X2Ooxt4ERn4IWhPG

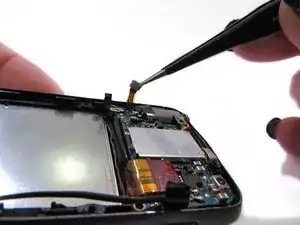

    k566ywP2op1juBuw

    • Using the fine pointed tweezers, unplug the cords connecting the headphone jack to the chip.

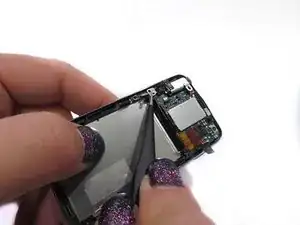

  5. 3BVIwT63Ka3tUXst
    3BVIwT63Ka3tUXst

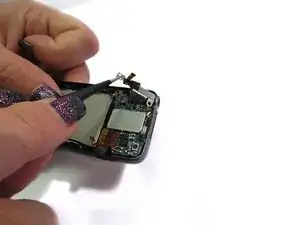

    kBcD2nZdcVBDXJtF
    vBbG2xGkQBiBydyg

    • Remove the headphone jack.

Заключение

To reassemble your device, follow these instructions in reverse order.
