Sony Vaio PCG-31311L RAM Replacement

Сложность

Easy

Шаги

4

Необходимое время

5 минут

Введение

We will be first be removing the bottom plate of the device. Then we will unseat the two RAM chips in order to replace or simply seat them back in the device.

Инструменты

  1. hXNNPmBTZr2WCNwN
    hXNNPmBTZr2WCNwN
    QHdbc46O4tsPcEwB

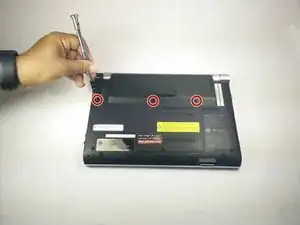

    • Start with device closed, powered off, and upside down.

    • Locate 3 screws on the bottom plate and unscrew.

    • These screws do not detach from the plate.

  2. NLjwn4WeFT6WU2C3
    NLjwn4WeFT6WU2C3
    YRmFoaJjDoaOubAg

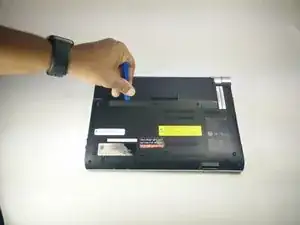

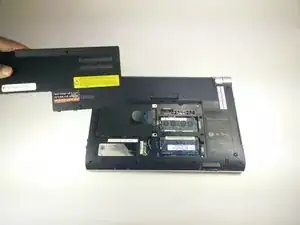

    • Use a plastic opening tool to pry up on the bottom plate.

    • Lift up and away from the device.

  3. CWQglgbPBQiGgrKd
    CWQglgbPBQiGgrKd
    PZOpejF5DSwgvZwV

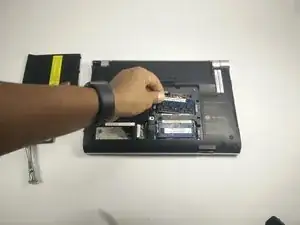

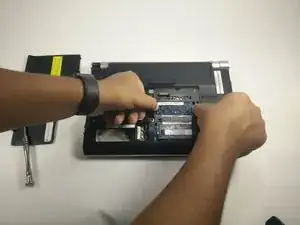

    • Locate the 2 clips on either side of the RAM chip.

    • Push both of them out and away from the RAM chip. The RAM chip should pop up.

    • Slowly remove the chip from the device

    • Make note of which side the slot is on in order to correctly reinstall the RAM chip.

  4. OXwhU43glv5hYgmA
    OXwhU43glv5hYgmA
    wRkXRcCZoRsTVHCv

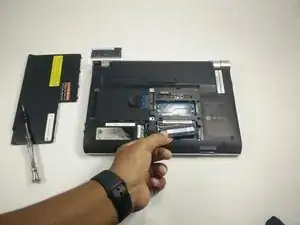

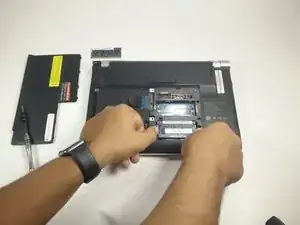

    • Repeat Step 3 on the other RAM chip

Заключение

To reassemble your device, follow these instructions in reverse order.
